    Polyfoam Compressive Strength Testing Machine Hardness Test Programmable

    Ask Lasest Price
    Brand Name : Infinity Machine
    Model Number : RS-8000P
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

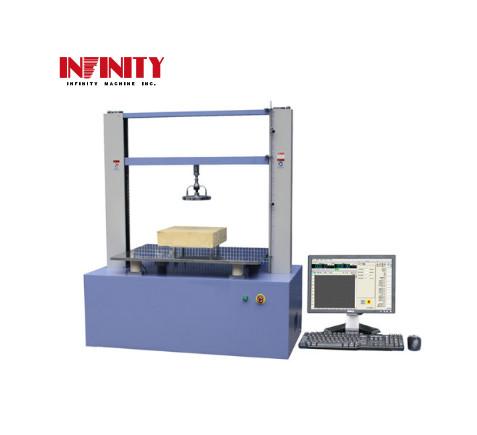

    Polyfoam Compressive Strength Testing Machine Hardness Test Programmable


    Polyfoam Compressive Strength Testing Machine Hardness Test Programmable


    Model: RS-8000P


    Application:


    It is suitable for foam (foamed plastic) or auto seat sponge to do compression and fatigue test; it is also suitable for foamed plastic hardness (indentation method) test. It adopts programmable control software and servo motor drive, satisfying A, B and C three test methods stipulated by GB/T10807-2006, and it can output dedicated report according to the standard.


    Standard:


    GB/T10807-2006 “flexible foam polymeric material hardness test (compression method)”

    ISO 2439: 1997,ASTM D3674, JISK6400-2004


    Features:


    1. It adopts 4 high precision load cells to test load, which is more accurate.

    2. It adopts special sensor to automatically align zero, which is better in repeatability.

    3. Test space is as big as 1000750mm, satisfying finished product test on auto seat.

    4. Random delivery for various foam test clamps, satisfying requirements of all kinds of tests.

    5. It has dedicated testing software, satisfying testing requirement of CI/lag loss ratio and automatically completing the whole testing process after aligning zero.


    Specification:


    ModelRS-8000P
    Capacity (optional)4KN ( 4x1000N or specified by user )
    Unit (switchable)N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2
    Load resolution1/500,000
    Load accuracy±0.5%
    Stroke (exclude the grips)400mm or specified by user
    Effective width1000mm
    Test speed0.001~600mm/min
    Speed accuracy±0.5%
    Stroke resolution0.001mm
    MotorAC servo Motor
    SoftwareSpecial control software
    Load rangeRangless
    Transmission rodHigh accuracy ball screw
    Main unit dimension (WxDxH)1400x750x1650mm
    Main unit weight550 Kg
    Power supplyAC220V 10A or specified by user

    Grip:
