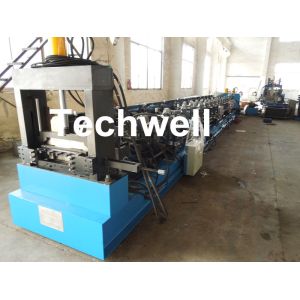

Q235 Cold Rolled Strip Steel Cable Tray Forming Machine with 11.5 Ton Weight

Q235 Cold Rolled Strip Steel Cable Ladder Roll Forming Machine with 11.5 Ton Weight

A). Main Specifications

1) Forming material thickness: 1.5-2.0mm

2) Forming material type: GI or Carbon Steel

3) Machine Frame: high grade steel welded and tempering treatment

4) Forming Speed: 0-15m/min excluding punching / cutting time

5) Forming Motor: ≈15KW

6) Width adjustable motor ≈1.5KW

7) Size adjustment: electrical power adjustment

8) Drive type: Chain Drive

9) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

10) Shaft Diameter: Φ 70mm

11) Bearing: HRB bearing ( Top Chinese brand )

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Finished profile straightness tolerance ≤±1.5mm/10m

15) Finished profile angle tolerance ≤±1.5 degree/10m

B). Applications

Cable tray, cable ladder, cable profile, tray profile

C). Working Flow

Auto Decoiler – Tranporting & 9 Rollers Leveling – Servo Feeding -- 100 Ton Punching machine --

Oriented – Transportation – 8 Holes Punching -- Main Forming -- Cutting -- Run out table

D). Competitive Advantages

High Quality

Reasonable Price

Good after Service

Factory Visit

1 Year Warranty

More Than 10 Years Experience

Provide sample in free

Products and design solution supplied fast and freely

Direct manufacturer, provide with high quality and best price

E). Reference Pictures

Wuxi Techwell Machinery Co.,Ltd is a professional manufacturer specializing in the developing and exporting of cold roll forming machines and insulated sandwich panel machines and Slitting cutting machines.

Roll Forming Machines: Metal roof & wall panel roll forming machine, steel tile roll forming machine, dual level roll forming machine, C/Z/U/L shaped steel roll forming machine, drywall stud and track roll forming machine, steel floor deck roll forming machine, highway guardrail roll froming machinem downspout roll forming machine, rainwater gutter roll forming machine, portable downspout / gutter machines, door frame roll forming machine, roller shutter door roll forming machine, no-girder k span arched panel roll forming machine, slitting & cutting, roof curving machine, stacker machine and so on.

Insulated Sandwich Panel Machines: PU sandwich panel machine, rubber belt pu sandwich panel machine, continuous pu sandwich panel machine, EPS sandwich panel machine, rockwool sandwich panel machine, eps & rockwool sandwich panel machine, mineral wool sandwich panel machine and so on.

Wuxi Techwell engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old customers. In paticular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, through design and installation. Our goal is " Future by heartiness, faith leads to the world".

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
