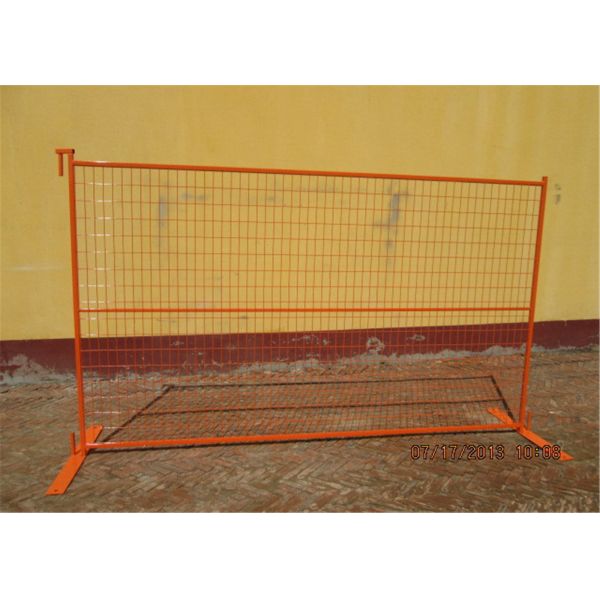

Canada Standard 8’/2430mm*10’/3048mm Width Construction middle
brace3/4" outer frame 25mm*25mm x 2.00mm spacing 2"*4"
The material of welded security temporary fence: low carbon steel
wire and galvanized pipes Surface treatments of temporary
fence:hot-dipped galvanized; electric galvanized; electric
galvanized with powder/PVC coating Manufacturing procedures of temporary fence:wire mesh fence panel
welding, welded together with tube/pipe frames,electric galvanized
and PVC/powder spraying
Canada style temporary fence is a classic style in Canada
market.Security fence , construction fence also its name.One set of
temporary fence including three parts:panel ,foot,top clamp.As for
the style,it has five different type,you can according to your need
to choose.Canada temporary fencing can quickly and easily be
installed,without the need to disturb the surface area by digging
holes or laying foundations. It's safe and firm, disassemble,
flexible and reuse.
Specification of Canada Standard Temporary fence |
Wire | From 3.00mm ---to 5.00mm |
Opening | 50 x 100mm, 60 x 120mm & 100 x 300mm |
Height Length | H: 3.75, 5, 6 & 7ft; L: 8, 8.5, 9, 9.5 & 10ft etc |
Frame &Middle pipe | 30x30x2mm, 30x30x1.5mm, 25x25x2mm, 25x25x1.5mm & 20x20x2mm, etc |
Feet | Based on customers' request |
Popular Model of Canada Standard Temporary Fence |
Dimensions | 3000*1800mm (W*H) |
Wire diameter | 4.0mm |
Opening | 50*100mm |
| |
Frame O.D. | 25*25mm |
Middle horizontal pipe O.D. | 20*20mm |
Block | 900*80*7mm |
Color | dark green, yellow, red, blue, and other ral color |
With flexible structure and various colors for choice, Canada style
temporary fencing is popular for your temporary fencing.
Canada portable fence with square frame and vertical or horizontal
square pipe is a kind of welded portable fence. Connected by top
coupler, metal feet and other accessories, it becomes a whole fence
system for temporary fencing. Because of the various colors, high
strength and durability, it has a long service life and it's safe
for residences fencing and factories fencing.
This square tube frame temporary fence is very popular in Canada
and Europe . It can quickly and easily be installed without the
need to disturb the surface aera by digging holes or laying
foundations. Our experts can assist you to define how much fence,
the best placement and the options that will be required to achieve
your goal. Temporary fencing is constructed from supplied for
assembly on site. It is very convenient for transportation. Special
panels and posts can be supplied if required.
When installing a Temporary Fencing system, it is important that
the right accessories are used to ensure a safe, stable and secure
fencing structure. Metal Temporary Fencing Feet and steel Couplers
are an essential requirement.
It is important for Temporary Fencing systems to comply with
various health and safety standards, so it is often a good idea to
consider factors which may affect it’s construction. The
surrounding environment or ground on which it will stand can often
affect the security or stability of Temporary Fencing and we offer
a range of high quality accessories to meet your system
requirements.
Our temporary fence can be used for many times, so it is wildly
used for construction site, big sporting events, warehouse
protection. Besides, this fence is very popular in rental
companies.
Canada Temporary Fence Panels
This Temporary Fencing Panel is made from steel and it's common
surface treatment is galvanized then powder coated , which consists
of a zinc coating and powder coated to help prevent rust. The panel
has a sturdy outer frame which is formed from 25x25mm or 30x30mm
outside diameter square steel tubes. The panel also contains a
horizontal square rail infill which helps to make it
wind-resistant, so it’s stability can be maintained even in open
areas. The apertures within the mesh are also smaller than a
Standard Temporary Fencing Panel, which makes the panel more
difficult to climb.
Canada Temporary Fence Posts
The Canada Temporary Fence panels are attached with high strength
square posts. The common posts outside diameter are 25x25mm and
30x30mm with thickness of 0.8 to 2.0mm. Panels are fixed to steel
posts using sturdy top pins.
Canada Temporary Fence ACCESSORIES
Canada Temporary Fence Coating
The welded wire mesh and steel frame of the temporary fence is
fully galvanized and then powder coated for a long service life.
Specifications of LINKLAND™ Temporary Fence
Fence | Specifications |
Panel Height(mm) | 4ft, 6ft, 8ft |
Panel Width(mm) | 8ft, 9ft, 9.5ft,10ft |
Opening (mm) | 50x100mm,75x100mm,55x110mm,etc |
Wire Diameter(mm) | 3mm,3.5mm,4mm |
Frame square tube | 25x25mm, 30x30mm |
Horizontal square rail | 20x20mm, 25x25mm |
Fence feet | 863x89x8mm, 750x100x7mm |
Top pins | Top clip to connect two panels together |
Finishing of fence | Electric galvanized then powder or hot dipped galvanized then
powder coated |
Color | Blue, green, yellow,red,etc |
Note: The fence can be customized according to your required if
above specification is not satisfied with you. |
Popular specifications of temporary fence:
wire | 3.00-5.00mm |
opening | 50x100mm,60x120mm,100x300mm |
HXL | H:5',6',7' L:8',8.5',9',9.5',10' |
Frame&middle pipe | 30x30mm,25x25mm,20x20mm |
We can manufacture according to your special requirements or
detailed drawings.
Canada Standard Construction Fence Panels |
Diameter -option2 | 11.5ga/ 2.50mm 11ga/3.00mm 9.5ga/3.50mm 10ga /3.3mm |
Diameter -option2 | 9ga/3.60mm 8.5ga/3.80mm 8ga/4.00mm |
Mesh spacing | 2"x4"/50mmx100mm ,4"x12"/100mmx300mm 3"x6" 75mm x 100mm |
Height | 4’/1220mm 6’/1830mm 8’/2430mm |
Width | 8’/2430mm 8.5”/2600mm 9’/2740mm 9.5’/2900mm 10’/3048mm |
Outer Frame | 3/4"/ 20mm 1"/25mm 1.2"/30mm 1.6"/40mm 2"/50mm RHS thickness 1.2mm
-2.00mm |
Middle frame | 3/4"/ 20mm 1"/25mm 1.2"/30mm 1.6"/40mm 2"/50mm RHS thickness 1.2mm
-2.00mm |
Accessories | 1 pieces top coupler plus steel plate base |
Steel Base Option 1 | Length 863mm* Width89mm*8.00mm 26"x3.5"X0.3" |
Steel Base Option 2 | Length 760mm*Width100mm*7.00mm 30"x4"x0.276" |
Steel Base Option 3 | Length 600mm*Width100mm*7.00mm 23.6"x4"x0.276" |
Finish 1 | Fully hot dipped galvanized |
Finish 2 | Fully hot dipped galvanized then INTERPON powder coated |
Finish 3 | Prepare galvanized |
Finish 4 | Prepare galvanized then INTERPON powder coated |
Features of the temporary fence:
easy and quick to set up/install/remove/tear down can accommodate uneven ground no ground penetration/damage stable, durable, long-lasting and heavy duty competitively priced aesthetically pleasing
Applications of welded security temporary fence:
construction sites safety and security, new building, homes or office sites safety protection special events, sports, concerts, festivals, gathering crowd/public control and restriction
1. Q: Can I come to have a visit?
A: Yes, Of course you are welcomed to visit our factory. Inform us
your schedule, we can pick you up then.
2. Q: Can I get free samples?
A: Sample is available. Commonly we'd like to provide small pieces
free samples for long business relationship, and customers pay for
the express fee.
3. Q:Can you provide OEM service?
A:Yes, all the products can be made as your require. Also we have
some hot sale products can recommended to you.
4. Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L.
Or 100% L/C at sight Or 30%deposit,70% L/C at sight
5. Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
6. Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
7. Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the
customers,and professional recommendation will be offered to
customers
Thanks for your attention on us. If you are interested in our
products, just feel free to contact us. Our best quotation will be
sent without any delay. Your satisfaction is our goal.
