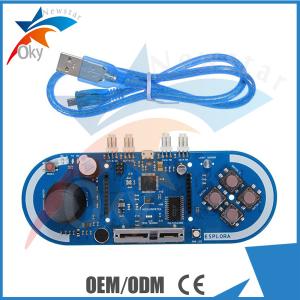

Atmega32u4 Board For Arduino / Esplora Game Programming Module
Board
Features:
| Controller: | Atmega32U4 |
| SRAM: | 2.5 KB |
| EEPROM: | 1 KB |
| Operating voltage: | 5V |
| Clock Speed: | 16 MHz |
| Flash Memory: | 32 KB of which 4 KB used by bootloader |
| Weight: | 210g |
Specifications:
The Atmega32U4 is a AVR microcontroller with 16MHz crystal
oscillator and a micro USB connection capable of acting as a USB
client device, like a mouse or a keyboard. The Esplora is a ready
to use, easy to hold controller that lets you explore the
infinitive possibilities you have in the world of sensor and
actuators, without having to deal with breadboards, soldering or
cable. The Esplora differs from all preceding boards in that it
provides a number of built in, ready to use set of on board sensors
for interaction. It's designed for people who want to get up and
running without having to learn about the electronics first. It
also has the potential to expand its capabilities with two
Tinkerkit input and output connectors and a socket for a colour TFT
LCD screen.
| 4 push-buttons: | Laid out in a diamond pattern |
| Linear potentiometer: | Slider near the bottom of the board |
| Microphone: | For getting the loudness (amplitude) of the surrounding environment |
| Light sensor: | For getting the brightness |
| Temperature sensor: | Reads the ambient temperature |
| Three-axis accelerometer: | Measures the board's relation to gravity on three axes (X, Y, and
Z) |
| Buzzer: | Can produce square-waves |
| RGB led: | Bright LED with Red Green and Blue elements for color mixing |
| 2 TinkerKit Inputs: | To connect the TinkerKit sensor modules with the 3-pin connectors |
| 2 TinkerKit Outputs: | To connect the TinkerKit actuator modules with the 3-pin connectors |
| TFT display connector: | Connector for an optional color LCD screen, SD card, or other
devices that use the SPI protocol |
Photos:
Competitive Advantages:
- Convenient & Friendly Customer Service.
2. Low Prices Direct From Factory Suppliers.
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 1 Year Factory Warranty.
6. Safe Shipping Way and Payment.
FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.
2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final
decision for wrong goods.
3.If the products don’t meet my demand after I received it,can I
return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
