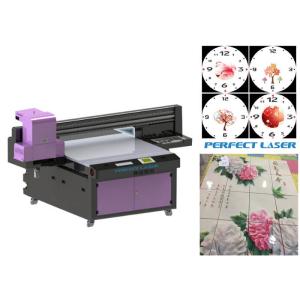

Double Rail Industrial UV Inkjet Printer Automatic Cleaning With 2g
Ram
※Application of Industrial UV Inkjet Printer
Applicable materials:Tile, glass, wood, metal plates, plastic
plates, acrylic, UV board, KT board, wave board, leather, textile,
paper, etc.
Applicable industries: Advertising industry, decoration industry,
the housing industry, leather industry, handicraft industry,
household furniture industry, the toy industry, jewelry industry,
souvenirs and other industries.
※Product Description of Industrial UV Inkjet Printer
Perfect laser is specialized in various types of laser equipment
research and development, production, marketing, training,
after-sales service.Our production of Flatbed UV Printer PE-UV1513 with high-speed, high-precision, high-quality dual-head
Epson, format 1500*1300mm, with high production efficiency, saving
more time and reduce production costs and other advantages. Can
achieve excellent production efficiency, rich bright colors, can
meet the various sectors, the various needs of a variety of
materials color inkjet customers.
※The Advantages of Industrial UV Inkjet Printer
Flatbed UV Printer are professional and technical refinement equipment for UV inkjet
printing plates carried out for a variety of flat printing
materials, high-precision double rail trolley raster control head
ensure precise definition screen printing. Flatbed UV Printer in accuracy and productivity are much higher than the traditional
way of printing, in addition, in the application operation, batch
and print production, Flatbed UV Printer is also the traditional way for a lot of flexibility, and cost
savings,expand the application's profit margins.
※Model Parameters of Industrial UV Inkjet Printer
| Model type | UV Flatbed PE-UV1513 |
| Maximum output size | 1500*1300mm |
| Droplet size | Ricoh Industrie nozzle | 3.5pl |
| Print head type | G5/G7 | GH2220 |
| Ink Type | Thermal transfer ink, eco solvent ink | aqueous ink, sublimation ink, UV ink |
| Material type | Thermal transfer paper, light boxes cloth | body paste, single transparent film |
| Print color | C/M/Y/K/W/LC/LM | |
| Maximum media thickness | 100mm | |
| Bearing weight | Max 200KG | |
| Printing accuracy | 360dpi*360dpi,360dpi*720dpi, 720dpi*360dpi,720dpi*720dpi, 720dpi*1440dpi, 1440dpi*1440dpi | 720dpi |
| Lift function | Smart ink car lift | electronic automatic / manual smart sensors detect height
adjustment |
| Image Format | TIFF(RGB & CMYK),BMP, PDF,EPS,JPEG | PSD/DWG/HPG/HGL/PLT/PS/ EPS/2PS/FJB/JPG/TIF/BMP |
| Ink system | 1000ml*8 colors | |
| NO. of print heads | 3~4 | 8 |
| Print speed | Draft Mode:up to ikkok45 m²/h(4+2 print head speed) | |
| Standard Mode:up to 36 m²/h(4+2print head speed) | |
| High-precision mode:up to 24 m²/h(4+2 print head speed) | High speed 4H GH2220:3pass 720*600dpi @ 30sqm/h |
| High speed 4H GH2220:4pass 720*900dpi @ 20sqm/h |
| Ultra-high precision:up to 17m²/h(4+2 print head speed) | High speed 8H GH2220:4pass 32m²/h |
| High speed 8H GH2220:6pass 20m²/h |
| High speed 8H GH2220:8pass 15m²/h |
| Power Requirements | 50Hz/60Hz,110/220VAC(±10%),1.5KW | |
| Interface | high speed USB | USB |
| Operating system | MS Window 98/Me/2000/XP/Win7 | Operating system WindowsXP Home Edition or Professional Edition |
| Software | | Maintop/Photoprint/Wasatch |
| RAM | | 2G |
| Hard disk | | 80G 250G |
| Operation condition | Temperature 15℃~35℃,Reative humidity 20%~80% | |
| Print Workflow | RIP after printing | RIP printing |
| Cleaning System | | Automatic cleaning system |
| Physical dimension | 2310mm*2100mm*1200mm | |
| Package Size | 2540mm*2200mm*1295mm | |
| Curing lamp | Germany Osram LED light |
| RIP software | USA PP PHOTOPRINT |
| X axle rail brand and model | Taiwan HIWIN mute linear guide rail |
| X shaft belt | Japan Fujifilm industrial wire belt |
| X axis /Y axis servo motor | Taiwan Delta |
| X axis beam | Two times tempered high strength steel, high hardness, no
deformation |
| X/Y axis print towline and wire harness | Germany IGUS |
| Y shaft drive screw | Imported grinding rod |
| Ink car lift rail brand | Taiwan HIWIN mute linear guide rail |
| Platform type and accuracy | Glass platform |
| Solvent capacity and liquid level alarm of main ink box | 1L capacity, including liquid level alarm |
| Filtration and brand | Cobetter |
| Negative pressure control mode | Double negative color control |
| Negative pressure meter brand and model | Japan Fujifilm |
| Electrical switch brand | Japan Omron |
| Ink pipe | France Saint-Gobain |
| X/Y/Z axis master control driver | X/Y/Z three axis servo drive, delta exclusive research and
development |
| Sprinkler board control | National exclusive network card, 3 cable transmission, easy to
upgrade |
| Ink circulation system | White ink circulation, white ink mixing to prevent plugging |
| Frame structure | All steel one-piece frame, non welded or locked aluminum frame |
※Samples Show of Industrial UV Inkjet Printer
※Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service: Any questions or problems after receiving
the large format flatbed Printer , please feel free to contact us. Problems would be solved for you
immediately.
4. Sophisticated and professional logistic agent.
※Competitive Advantages
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality large format flatbed Printer at competitive price in quick delivery.
