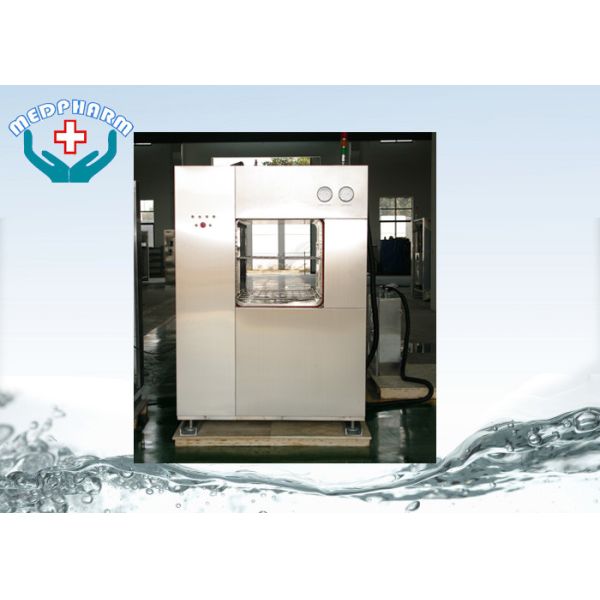

Overpressure Protection Autoclave and Sterilizers With Safety Door
System
Main parameter
- PLC based control system
- 5.7", LCD color touch screen display
- Easy to read from multiple angles
- Self-prompting menus
- Multi-layered password security
- 15 easy to program cycles, including cycle names
- Internal cycle memory
|
- Impact printer with paper take-up
- Full cycle print out
- Optional CF card data storage
- Optional remote service access
- Audible and visual alarms for safety
- Custom programming available
- Replaces any existing steam sterilizer control unit
|
Model
| Model | Chamber Size | Overall Size | Steam | Water | Power |
| W*H*D mm | W*H*D mm | Kg/cycle | Kg/cycle | KVA |
| MDB-0.11V | 400*400*700 | 1000*1800*1040 | 14 | 35 | 2 |
| MDB-0.16V | 400*400*1000 | 1000*1800*1340 | 16 | 40 | 2 |
| MDB-0.20V | 400*400*1300 | 1000*1800*1640 | 18 | 45 | 2 |
| MDB-0.24V | 600*600*670 | 1200*2000*1010 | 20 | 50 | 2 |
| MDB-0.30V | 600*600*840 | 1200*2000*1180 | 22 | 55 | 2 |
| MDB-0.36V | 600*600*1000 | 1200*2000*1340 | 25 | 60 | 3 |
| MDB-0.45V | 600*600*1250 | 1200*2000*1590 | 27 | 65 | 3 |
| MDB-0.60V | 600*600*1670 | 1200*2000*2010 | 30 | 70 | 3 |
Features
♦ Extreme process reliability
♦ User-friendly HMI
♦ Parameters could be easy adjusted for perfect compliance with
various customer requirements
♦ Efficient drying based on a high performance vacuum system
♦ Minimal energy consumption
Specification
►Components directly touching materials are all made of SS304, such
as the chamber, door plate,
pipelines and loading cart.
►The jacket is of good quality material SS304.
►Heat resistant silicon rubber gasket in accord with FDA
regulations.
►The external cover and insulation cover are made of SS304 which
makes the equipment more
easily cleaning.
►Integrity testing port.
►Diploid temperature sensor for control system and recording system
individual.
►High quality silicate insulation cotton can effectively lower
energy emitting consumption and
heat radiation.
Optional for customer selection
• Energy supply testing and monitoring system, such as the pressure
of steam, water and
compressed air.
• Condensate water cooling tank equipped for drainage temperature
safety.
• PID valve for the chamber uniform temperature
• Customized design and manufacturing is our pleasant job and
offering satisfied solutions
complied for your special URS is our duties.
Medpharm Sterilizer showing
Standard packing of Medpharm Sterilizers
Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
