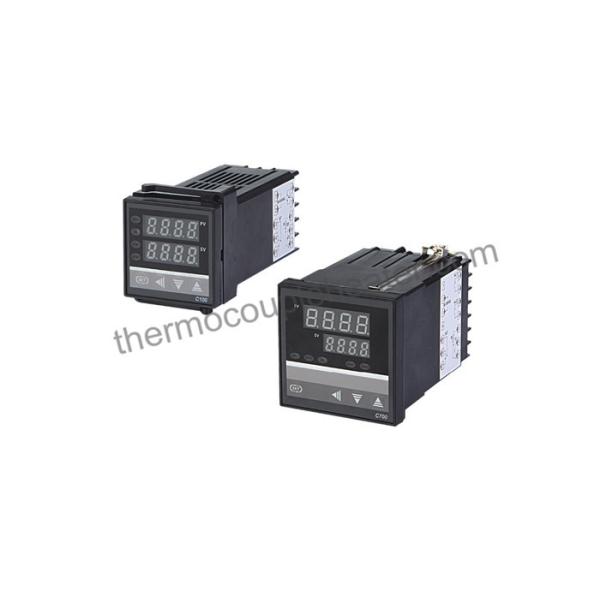

REX - C100 PID xmtg Temperature Controller, intelligent temperature controller

REX - C100 PID xmtg Hot Runner Temperature Controller , intelligent temperature controller

General Description

1. The product adopts digital calibration technology for input measurement and support various thermocouples and resistances, max resolution could reach to 0.01°C.

2. With advanced PID intelligent control algorithm and auto tuning (AT) function, no overshoot.

3. The advanced modular structure provides better user experience and easy maintenance. Various output options are able to meet requirements of different applications.

4. Friendly and customized operating interface.

5. Editable permission level and able to set password.

6. 100-240VAC power supply or 24VDC adaptor as power source.

7. Various installation dimensions options.

8. Anti-interference performance comply with EMC under harsh industrial environment.

Specitications

Input
Thermocouple	K, S, R, E, J, N, T, B, WRe3-WRe25, WRe5-WRe26
Thermal resistor	Pt100, Cu50
Linear voltage	0~5V, 1~5V, 0~1V, 0~100mV, 0~20mV, 0~500mV etc.
Linear Current	0~20mA, 4~20mA or two-way transmitter
Optional extended input	Together with above mentioned inputs, an additional input can be provided upon request. (Graduation index is needed)

Range
Thermocouple	K(-50~1300℃), S(-50~1700℃), R(-50~1700℃), E(0~800℃), J(0~1000℃), N(0~1300℃), T(-200~+350℃),B(200~1800℃)
Thermal resistor	Cu50(-50~+150℃), Pt100(-200~+600℃)
Linear Input	-9990~+32000 (shall be set by user in this range)
Accuracy	0.3%
Resolution	0.1°C for K, E, T, N, J, Cu50, Pt100;1°C for S, R
Sampling period	8 times per second; (when digital filter parameter FILt=0, the period could be ≤0.5s)
Temp. drift	≤0.015%FS /℃ (typical value is 80ppm/℃)
Alarm	Top value, bottom value, deviation top value, deviation bottom value. Max. output 4 ways, provides function of temperately alarm free while power on
Control period	selectable between 0.24~300.0 seconds range

Control (output) mode
Relay (NO+NC)	250VAC/2A,30VDC/2A,250VAC/1A ,30VDC/1A
TRIAC no contact discrete output (NO or NC)	100~240VAC/0.2A(continuous),2A (20mS instantaneous, repeat period≥5s)
SSR Voltage output	12VDC/30mA (to drive SSR)
Thyristor trigger output	Can trigger TRIAC of 5~500A, a pair of inverse paralleled SCRs or SCR power module
Linear current output	0~20mA or 4~20mA (Output voltage with X3 module: ≥10.5V; with X5 module: ≥7V
EMC	±4KV/5KHz according to IEC61000-4-4; 4KV according toIEC61000-4-5.
Isolation	Between power, relay and signal	≥2300VDC
	Between SSR voltage output and thermocouple input	≥600VDC
Power	100~240VAC/50-60Hz,+10%,-15%, 120~240VDC or 24VDC/AC +10%, -15%
Power consumption	≤5W
Operation condition	Temp. -10 ~ +60℃ Humidity ≤90%RH
panel dimension	96×96mm, 160×80mm, 80×160mm, 48×96mm 96×48mm, 48×48mm, 72×72mm
Panel cutout dimension	92×92mm, 152×76mm, 76×152mm, 45×92mm 92×45mm, 45×45mm, 68×68mm
Install depth	≤100mm
