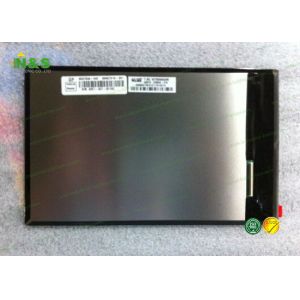

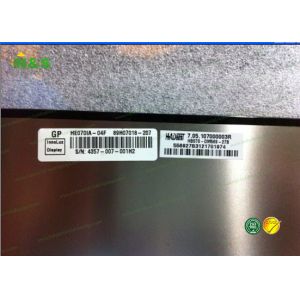

    101.5×159.52×0.82 mm Outline Chimei LCD Panel HE070IA - 04F 7.0 inch

    Ask Lasest Price
    Brand Name : Chimei LCD Panel
    Model Number : HE070IA-04F
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    101.5×159.52×0.82 mm Outline Chimei LCD Panel HE070IA - 04F 7.0 inch

    101.5×159.52×0.82 mm Outline Chimei LCD Panel HE070IA - 04F 7.0 inch


    What is Our Advantage

    1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.


    Here comes our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED312TT2E Ink31.2"2560×1440
    ES133TE1E Ink13.3"2200×1650
    ES133TT2E Ink13.3"2200×1650
    ED133TT1E Ink13.3"2200×1650
    ED060SD1E Ink6.0"600×800

    Pls contact to us for more stock information: salespm@nselectronic.com.hk


    Packing & Delivery for our LCD Screen Panel Replacements

    1. Anti-static Bag Packing.

    2. Anti-Shock Bubble Bag Packing

    3. Foam and Hard Carton Packing

    4. Picked up by forward and delivered by express services.


    CHIMEI INNOLUX HE070IA-04F General Features

    Panel Brand :CHIMEI INNOLUX
    Panel Model :HE070IA-04F
    Panel Type :a-Si TFT-LCD , CELL
    Panel Size :7.0 inch
    Resolution :800(RGB)×1280 , WXGA
    Display Mode :IPS, Normally Black, Transmissive
    Active Area :94.2×150.72 mm
    Outline :101.5×159.52×0.82 mm
    Surface :Hard coating
    Glass Depth :0.25+0.25 mm
    Transmissivity :4.96% (Typ.)(with Polarizer)
    Contrast Ratio :800:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 60%
    Response Time :50 (Typ.)(Tr+Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Signal Interface :LVDS (1 ch, 8-bit) , 40 pins
    Input Voltage :3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL)

    CHIMEI INNOLUX HE070IA-04F Optical Features

    Display Mode :IPS, Normally Black, Transmissive
    Brightness :0 cd/m²
    Contrast Ratio :800 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :60% NTSC (CIE1931)
    Response Time :50 (Typ.)(Tr+Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :Symmetry
    Transmissivity :4.96% (Typ.)(with Polarizer)
