    Atmosphere Protection Hydrogen Annealing Furnace High Convection Flow Heating


    Atmosphere Protection Hydrogen Annealing Furnace High Convection Flow Heating ​

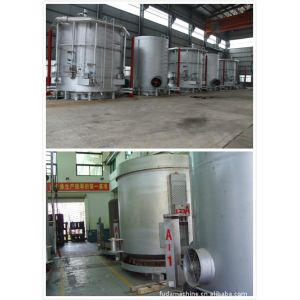

    1 Equipment name: Strong-convection bell-type annealing furnace


    2 Technical parameters :

    2.1 Effective charging size: Φ1600×3200mm

    2.2 Charging capacity: ≥8T

    2.3 Rated temperature: 900

    2.4 Furnace temperature homogeneity: ±5 (mid-posterior section of heat preservation)

    2.5 Temperature rise of furnace shell surface: ≤50

    2.6 Electric heating power: 220Kw

    2.7 Number of temperature control zones: 2 Zone (double-temperature and double-control)

    2.8 Power of circulating fan: 37/11Kw Fan blade diameter: φ800

    2.9 Cooling fan power: 1.5Kw x 2

    2.10 Lifting height: ≥9m

    2.11 Cooling process: Wind and water double-cooling

    2.12 Equipment cooling water: 3m³/h

    2.13 Process cooling water: 8m³/h

    2.14 Atmosphere protection: Ammonia decomposition gas (Hydrogen 75% + Nitrogen 25%)


    3 Equipment composition and price: (Single set)

    No.Equipment nameQTY.
    1Heating jacket(bell)2pc
    2Furnace platform(with Circulating fan)3 pc
    3Inner tank(retort)3 pc
    4Cooling cover1 pc
    5Electrical control system2 pc
    6Accessories1set
    6.1Vacuum pump (2X-70A), 1 for 2 sets1 set
    6.2Lifting sling for inner cover1 pc
    6.3Atmosphere valve stand3 pc
    6.4Guide pin1 set
    6.5Exhaust device1 set
    7Ammonia decomposition device, capacity of 40m3 (Customer can provide by himself)1 set

    ② The price quotation for 40m³ ammonia decomposition device with purification system

    (Customer can also provide by himself), which can support 2 sets of furnaces mentioned-above.
