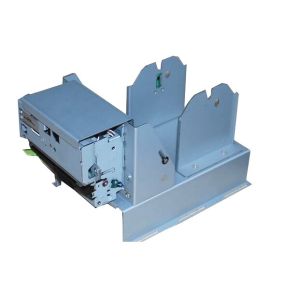

ATM kiosk thermal printer module bill payment machine kiosk printer
,with auto cutter
Product Description
Features:
2" thermal printer mechanism
Compatible with Fujitsu FTP628MCL101/103
Compact & light design
Easy paper loading
Low & highresistance
90° vertical paper feeding
Applications:
Handheld/mobile device
POS/EFT POS
Measuring equipment
Fire-fighting control equipment
Medical equipment
Industrial instruments & meters
Coin counters & sorters
Dot per Line384 dots/line
Resolution8 dots/mm
Paper Feed Pitch0.125mm
Valid Print Width48mm
Print Speed25~80mm/s
Paper Width58 mm
Paper Thickness60 to 100μm (some paper in this range may not be used because of paper
characteristics)
Paper Loading Method:Drop-in easy loading
Character, number of columns:
12* 24 dots, 32 columns: ANK24* 24 dots, 16 columns: ANK8* 16 dots, 48 columns: ANK
16* 16 dots, 24 columns: ANK
Print HeadPower:4.2V to 8.5V, Ave.0.87A (at 5V)
MotorPower:4.2V to 8.5V, Max.0.5A (at 5V)
LogicPower:3.0 V to 5.25 V, Max. 0.05A (at 5V)
Dimension(W*D*H) :69.7*32.7*15.5 mm
Weight:Approximately 45g
Life Span:110 million pulses or more (print ratio12.5%)50 km or more
OperatingTemperature:0°C~ 50°C
Operating Humidity:20 ~ 85% RH
Storage Temperature:-25° C~ 70° C
Storage Humidity:10 ~ 90% RH
Head temperature detection:Via thermistor
Paper out detection:Via photo interrupter
Head-up detection:Via photo interrupter
