Model Number : | Opct45al |
Price : | USD $0.001-USD$1000.00 |
Payment Terms : | T/T , Paypal, Western Union. Escrow etc. |
Delivery Time : | 2-5 days |

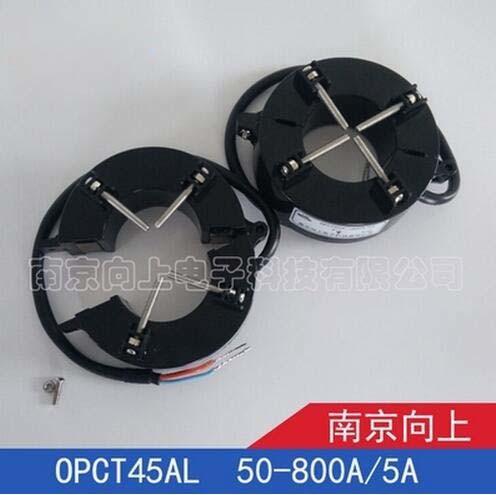

OPCT45AL open type current transformer with high precision, good consistency, for electric energy metering .
The length can be customized ,800A/5A 600A/5A 400A/5A 200A/5A 100A/5A 50A/5A .
parameters: (unit /mm)
Main technical parameters:
Model --- OPCT45AL
Rated input current --- 50A~800A (can be customized)
Rated output current --- 5A
output error --- -0.5% ~ +1%
purpose --- Current measurement
sealing material --- epoxy resin
Installation method --- Open type installation
working temperature --- -20 C ~+40 C
![]() |
