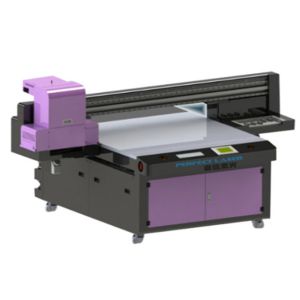

    2019 New Multi-function UV Ink Fatbed Printer for Leather and Plastic Printing

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PE-UV1513
    Certification : CE / ISO / FDA / SGS / TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, PayPal, Western Union
    Supply Ability : 3000 Unit per Month
    Delivery Time : 5-10 Working Days
    • Product Details
    • Company Profile

    2019 New Multi-function UV Ink Fatbed Printer for Leather and Plastic Printing

    2019 New Multi-function UV Ink Fatbed Printer for Leather and Plastic Printing


    Product Description of UV Ink Fatbed Printer


    Perfect laser is specialized in various types of laser equipment, production, sales, training, after-sales company. In order to meet the needs of a wider range of customers, Perfect Laser has introduced a flatbed inkjet printer model PE-UV1513 with a web width of 1500*1300mm and a higher production efficiency. At the same time can produce colorful inkjet works, to meet the needs of a variety of customers need to color inkjet.


    Product Features of UV Ink Fatbed Printer


    1. The uv flatbed use the sectional suction platform, can adjust the air volume, convenient and effective protection of the nozzle and can avoid wasting ink, to a certain extent, reduce production costs.

    2. The format reaches 1500*1300mm and the production efficiency is higher.

    3. The flatbed inkjet printer use of high-quality color management software, to ensure that the output is full of gorgeous.


    Application of UV Ink Fatbed Printer


    Professional and personalized markets for decorations, special products, such as: art glass, decorative ceramics, wooden handicrafts, furniture, false metal pulls, ceilings, curtains, etc.


    Model Parameters of UV Ink Fatbed Printer


    Model typeUV Flatbed PE-UV1513
    Maximum output size1500*1300mm
    Droplet sizeRicoh Industrie nozzle3.5pl
    Print head typeG5/G7GH2220
    Ink TypeThermal transfer ink, eco solvent inkaqueous ink, sublimation ink, UV ink
    Material typeThermal transfer paper, light boxes clothbody paste, single transparent film
    Print colorC/M/Y/K/W/LC/LM
    Maximum media thickness100mm
    Bearing weightMax 200KG
    Printing accuracy

    360dpi*360dpi,360dpi*720dpi,

    720dpi*360dpi,720dpi*720dpi,

    720dpi*1440dpi,

    1440dpi*1440dpi

    720dpi
    Lift functionSmart ink car liftelectronic automatic / manual smart sensors detect height adjustment
    Image Format

    TIFF(RGB & CMYK),BMP,

    PDF,EPS,JPEG

    PSD/DWG/HPG/HGL/PLT/PS/

    EPS/2PS/FJB/JPG/TIF/BMP

    Ink system1000ml*8 colors
    NO. of print heads3~48
    Print speedDraft Mode:up to ikkok45 m²/h(4+2 print head speed)
    Standard Mode:up to 36 m²/h(4+2print head speed)
    High-precision mode:up to 24 m²/h(4+2 print head speed)High speed 4H GH2220:3pass 720*600dpi @ 30sqm/h
    High speed 4H GH2220:4pass 720*900dpi @ 20sqm/h
    Ultra-high precision:up to 17m²/h(4+2 print head speed)High speed 8H GH2220:4pass 32m²/h
    High speed 8H GH2220:6pass 20m²/h
    High speed 8H GH2220:8pass 15m²/h
    Power Requirements50Hz/60Hz,110/220VAC(±10%),1.5KW
    Interfacehigh speed USBUSB
    Operating systemMS Window 98/Me/2000/XP/Win7Operating system WindowsXP Home Edition or Professional Edition
    SoftwareMaintop/Photoprint/Wasatch
    RAM2G
    Hard disk80G 250G
    Operation conditionTemperature 15℃~35℃,Reative humidity 20%~80%
    Print WorkflowRIP after printingRIP printing
    Cleaning SystemAutomatic cleaning system
    Physical dimension2310mm*2100mm*1200mm
    Package Size2540mm*2200mm*1295mm
    Curing lampGermany Osram LED light
    RIP softwareUSA PP PHOTOPRINT
    X axle rail brand and modelTaiwan HIWIN mute linear guide rail
    X shaft beltJapan Fujifilm industrial wire belt
    X axis /Y axis servo motorTaiwan Delta
    X axis beamTwo times tempered high strength steel, high hardness, no deformation
    X/Y axis print towline and wire harnessGermany IGUS
    Y shaft drive screwImported grinding rod
    Ink car lift rail brandTaiwan HIWIN mute linear guide rail
    Platform type and accuracyGlass platform
    Solvent capacity and liquid level alarm of main ink box1L capacity, including liquid level alarm
    Filtration and brandCobetter
    Negative pressure control modeDouble negative color control
    Negative pressure meter brand and modelJapan Fujifilm
    Electrical switch brandJapan Omron
    Ink pipeFrance Saint-Gobain
    X/Y/Z axis master control driverX/Y/Z three axis servo drive, delta exclusive research and development
    Sprinkler board controlNational exclusive network card, 3 cable transmission, easy to upgrade
    Ink circulation systemWhite ink circulation, white ink mixing to prevent plugging
    Frame structureAll steel one-piece frame, non welded or locked aluminum frame

    Product Sample of UV Ink Fatbed Printer



    Packaging & Delivery


    1. Prompt deliver at the very day.

    2. Sophisticated and professional logistic agent.

    3. Well-trained and disciplined packing team.

    4. After-sale service:. Any questions or problems after receiving the product, please feel free

    to contact us. Problems would be solved for you immediately.


    Competitive Advantages


    1. We offer high quality products at competitive price in quick delivery.

    2. 100% custom pass guaranteed.

    3. Good after-sale service.

    4. Flexible and Untraceable payment terms.

    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
