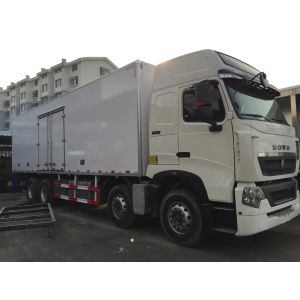

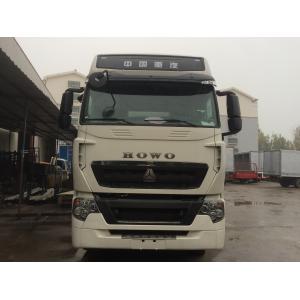

A7 Refrigerator Van Fiberglass Sandwich Panels Box Truck 30T for
fish transport ISO / CCC / BV
Specifications:
| Truck Body Outer Dimension: | 9600mm(L) x 2500mm(W) x 2600mm(H) |
| Truck Body Inner Dimension: | 9390mm(L) x 2290mm(W) x 2390mm(H) |
| Front Penal Thickness: | 105mm |
| Floor Penal Thickness: | 105mm |
| Roof Penal Thickness: | 105mm |
| Side Penal Thickness: | 105mm |
| Rear Penal Thickness: | 105mm |
| Side Door | None |
| Side Door Dimension | None |
| Rear Door | Yes; |
| Rear Door Dimension | Full Size Double Opening |
| Optional Rear Door Type | Full Size Triple Opening/Customized Single Opening |
| Refrigeration Unit Type | Kingtec K693D With Standby Motor System |
| Refrigeration Unit Optional Type | Carrier, Thermo King, Mitsubishi |
| Refrigeration Unit Service Ladder | Yes |
| Refrigeration Unit Service Platform | None |
| Multi-Temperature System | Optional |
| Multi-Temperature Clapboard Type | Optional |
| Cargo Bar | Optional |
| Flooring Type | Aluminum T Type Airflow Tracking Flooring |
| Optional Flooring | Aluminum Checkered Plate/Anti-Slip Resin |
| Optional Meat Hanging System | None |
| Optional Meat Hanging Hooks Type | None |
| Optional Meat Hanging Hooks Quantity | None |
| Optional Meat Hanging Rail Type | None |
| Optional Meat Hanging Rail Quantity | None |
| Ceiling Light Quantity | 4 Sets of LED White |
| Mark Light Quantity | Yes; 2 x White LED At Front; 2 x Red LED At Rear |
| Lock Set Type | Stainless Steel |
| Hinges Type | Stainless Steel |
| Aluminum Decoration Profiles | Yes; Anodized Aluminum Extrusion Profile |
| PVC Strip Curtain | Optional |
| Optional Truck Reverse Camera System | Yes |
Description:
The internal and external coverings are integral FRP sheets
(fiberglass reinforced polyester), therefore,
homogeneous construction (without any metallic reinforcements).
In the case of our technical system, the tangential stress is being
carried, for the most parts by the
laminated cover in connection with Zstraps. Selfsupporting sandwich
floor is with inserted laminated
plywood sheets. The rear door assembly is firmed with stainless
steel door frame, hinge and low
temperature rubber gasket, which insurethe body hermetic.Now, the
dimension of panel can be chosen
at the follow range: length 018,000mm; width 0-3,500mm; thickness
40mm200mm. And we can provide
variety of colorful panels and advertising design stick to
customers' requirements. Special structure and
strict production management endow our refrigerated bodies with
quality insulation, high intensity, light
weight, non-corrosive, no pollution, and provides longer service
lifetime, economizing on energy,
environmentally friendly characters, its high gloss appearance FRP
surface also provides your company
with good advertising potential.We deeply cooperate with Sinotruk
to fit our refrigerated bodies onto
Sinotruk Howo new type heavy duty truck chassis.Mass production
leads to mass purchasing cost.
We can provide Carrier, Thermo King, Mitsubishi, Kingtech and other
China-made refrigeration unit to
customer.
Applications:
Refrigerator truck is closed van truck, which is used to transport
frozen or fresh goods, it fitted with the
refrigeration unit device and polyurethane thermal insulation van
and it is refrigeration special use
transport truck, usually use for transporting frozen foods (freezer
truck), dairy (milk truck), vegetables
and fruits (fresh goods transport vehicle), vaccine and drug
(vaccine vehicles) etc…
