    Truck Concrete Mixer , Concrete Mobile Mixer Chassis Diesel 6x4 Left Hand Driving

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : ZZ1167N4617N
    Certification : ISO/CCC/SGS
    Price : $45000-70000
    Payment Terms : T/T or western Union
    Supply Ability : 3,000pcs per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

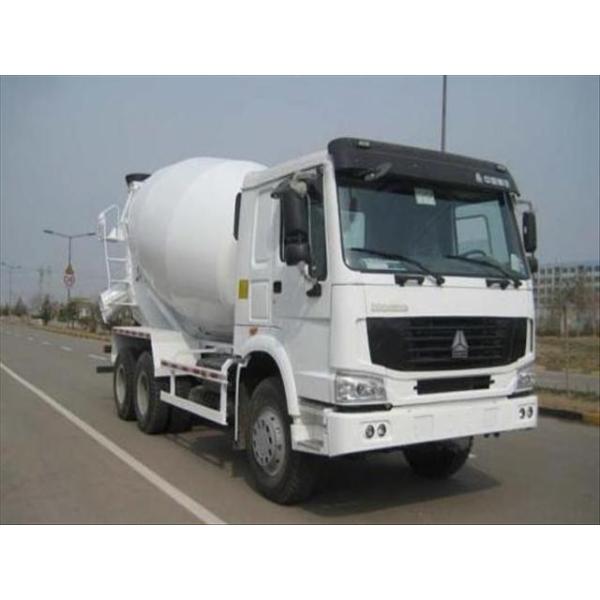

    Truck Concrete Mixer , Concrete Mobile Mixer Chassis Diesel 6x4 Left Hand Driving

    9m3 concrete mobile mixer chassis Diesel 6x4 Left Hand Driving


    Specification:


    VEHICLE SPECIFICATIONDESCRIPTION
    Truck ModelZZ1257N3647
    Type of Vehicle9m3 Concrete Mixer Truck
    Truck BrandSINOTRUK—HOWO
    Driving PositionLeft hand Driving
    Fuel tanker capacity L400
    The Total Mass25,000kg
    Dead Weight12500
    Max speed km/h km/h90
    ColorOptional
    ManufactureChina National Heavy Duty Truck Group Co., Ltd.
    Chassis & Add Components
    Frame Details

    parallel ladder with U-profiles and riveted

    cross members

    Dimension Lx W xH unloaded mm9003x2496x3940
    Approaching angle/Departure angle °16/30
    Overhang front/rear mm1500/1745
    Wheel base mm3600+1350
    Engine
    ModelWD615
    BrandSINOTRUK
    Power336HP
    EmissionEURO III
    Displacement L9.726
    Type

    water-cooled,four strokes,6 cylinders in line,turbocharged,

    directly injection

    Kind of FuelDiesel
    Fuel Consumption L/100km25-30L/100km
    Clutch & Gear Box System
    ClutchSINOTRUKΦ430mm diaphragm spring clutch
    Gear Box

    HW13710

    10 forwards and 2 reverse.

    BrandSINOTRUK
    Axles
    Front Axle ModelHF9 axle. Capacity: 9000kg
    Rear AxleHC16 axle. Capacity:2X 13000kg
    Ratio of rear axle3.93/4.42/4.80/5.73
    Electrical System
    Battery2X12V/165Ah
    Alternator28V-1500kw
    Starter7.5Kw/24V
    Brake System
    Service brakeDual circuit compressed air brake
    Parking brake

    spring energy, compressed air

    operating on rear wheels

    Auxiliary brakeEngine exhaust brake
    Steering system
    ModelZF8098
    BrandGerman Brand
    Typehydraulic steering with power assistance
    Wheels & Tyres
    Type12.00-20
    MaterialBias tires
    Quantity10+1 spare
    Cabin
    TypeHW76

    (single sleeping, with air-condition),

    all-steel forward control,55ºhydraulically tiltable to the front,

    2- arm windscreen wiper system with three speeds,

    laminated windscreen with casted-in radio aerial,

    hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,

    with heating and ventilating system,

    outer sun visor, adjustable roof flap, with stereo radio/cassette recorder,

    safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension

    and shock absorbers

    Body
    Agitating Capacity9m3
    Geometric Volume14.5m3
    Drum rotation speed0-14r/min
    Feeding Speed>3.5m3/min
    Water Tank Volume400L
    Discharge Remain Ratio<0.2%
    Water supplyPressing type

    Description:


    Using advanced foreign technology, after more than ten years of technology to improve the function of the make the product more perfect, more reliable quality, it is more convenient to use. The mixing trucks production adopts a variety of advanced technology, the mixer tank can be produced 8 m3, 9 m3, 10 m3, 12 m3, 14 m3, 16 m3 truck mixer and so on the many kinds of volume.


    Applications:


    Concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.


    Competitive Advantage:


    1. Get the new products, and meet your processing requirements.

    2. Our quality products help you to win money and earn much time.

    3. We always do our best to save cost for you and ensure the quality goods.

    4. Our rich-experience technical teams are standing by all the tiim

    5. You can know the advance overseas technology from our products. Which bring you more competitive advantages.
