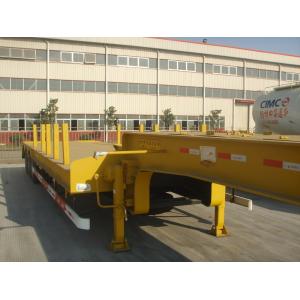

40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation

    Buy cheap 40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation from wholesalers

    Buy cheap 40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation from wholesalers
    • Buy cheap 40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation from wholesalers
    • Buy cheap 40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation from wholesalers
    • Buy cheap 40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation from wholesalers
    • Buy cheap 40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation from wholesalers

    40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation

    Ask Lasest Price
    Brand Name : HAIZHOU
    Model Number : HZ4257N3247
    Certification : ISO/CCC/SGS
    Price : $12000-30000
    Payment Terms : T/T or western Union
    Supply Ability : 3,000pcs per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    40 Foot Gooseneck 3 Axle Low Bed Semi Trailer For Container Transportation

    Low bed 40 foot gooseneck trailers , container transportation trailer yellow color with warranty

    Specification:


    Place of OriginShangdong province, China
    ColorAny color will be available
    Rated Load60 Tons
    Tare Weight9900 kg
    Wheel Base1310 (mm)
    Tyre Specifications11.00R20
    No. Of the Tyres12
    Axle Brand13Tonnage *FUWA Brand
    No. Of the Axles3
    Pieces of leaf-spring10
    SuspensionHeavy Duty Leaf Spring
    Front/Rear Overhang1950 mm
    Outside Dimensions13000x3000x1500 (mm) (LxWxH)
    Material of the Main Beam

    Q345B/ST52-3 manganese plates, automatic submerged arc,

    Main-beam Height 500mm,

    Lower flange: 20mm

    Upper flange: 20mm

    Mid Web: 12mm

    UsageFor heavy duty machine, as transformer, crane, excavator transportation.
    Brake SystemDual Lines Braking System With Automatic Air Chambers
    Brake Air ChamberFour double and two single chamber
    Electrical System24V, 7core socket, lights according to European standards.
    Floor3mm management plate
    Tool Box1 box of standard tools
    Spare tire carrier2 sets
    Color and LogoDepends on the buyer’s requirement.
    The traction pin2’ & 3.5’ inter-changeable
    Pin HeightAccording to the height of the tractor saddle.

    Description:


    The most popular exported model and the most common trailer. It has a vareity of uses on road transportation. It can move various machinery and equipments, such as excavator, bulldozer, crushing machine, transformer, construction machinery, factory equipments and bulk cargos.


    Applications:


    Apply to transport longer larger parts, miscellaneous pieces of cargo, large components and equipment.


    Competitive Advantage:


    1. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

    2. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.

    3. All colors are available according to your choice.

    4. Fast production period, and quick arrangement of delivery.

    5. Professional team for spare parts and aftersales services.


    Warranty

    ITEM NAMEWARRANTYITEM NAMEWARRANTY
    MAIN FRAMEFRAME1 YEARRUNNING GEARAXLE6 MONTHS
    SUSPENSION6 MONTHSAXLE BEARING3 MONTHS
    KING PIN1 YEARWHEEL HUB3 MONTHS
    BALANCE ARM3 MONTHSTIRE6 MONTHS
    ITEM NAMEWARRANTYITEM NAMEWARRANTY
    BRAKING DEVICEBRAKE DRUM3 MONTHSSUPPORT DEVICELANDING GEAR6 MONTHS
    BRKE CHAMBER3 MONTHS

    SPARE WHEEL

    CARRIER

    6 MONTHS
    AIR RESERVOIR6 MONTHS
    ITEM NAMEWARRANTY
    OTHERSLEAF SPRING3 MONTHS
    BRAKE CHAMBER DIAPHRAGM3 MONTHS
    EMERGENCY RELAY VALVE3 MONTHS
    BRAKE SHOE3 MONTHS
    RELAY VALVE3 MONTHS

    Contact us

    Danny Xi

    Marketing Manager

    Mobile:008613011707382

    Skype:xiliang999
