Feature
1. Width: 300mm-2200mm
2. Thickness: 4mm-30mm
3. Plies: 2-10
4. Top rubber: 1.5-8 bottom rubber: 0-4.5
5. Tensile Strength (N/mm2): From 8 to 24
6. Elongation at Break (%): From 300 to 450
2. Specifications
Cotton conveyor belt
Type: CC-56, TC-70
2. Belt Thickness: 4-30mm
3. Belt Width: 300-2400mm
NN conveyor belt
The carcass is NN fabric(both Warp and Weft are Nylon fabric).
EPconveyor belt
The carcass is EP fabric (Warp is Polyester and Weft is Polyamide).
It has low elongation, high modulus and good throughability.
3. Construction
CC/NN/EP Fabric Carcass (warp is Nylon and weft is Nylon)
Special rubber layer with good fabric adhesion properties (skimmed
layer)
Cover rubber (special quality requirement)
4. Application
Quarry, Gravel, Sand
Cement, Concrete Plants
Oal, Mining
Steel Industry, Heating and Power Station, Garbage Incineration
Plants
Recycling, Compost Industry,
Mineral Processing Plants
Road Construction Machinery
Wood Working, etc
Conver properties of conveyor belts
| Type | Mpa ≥ | Mpa ≥ | mm2 ≤ | Change Rate of tensile strengh and elong after aging |
| % |
| H | 24 | 450 | 120 | -25~+25 |
| D | 18 | 400 | 100 | -25~+25 |
| L | 15 | 350 | 200 | -25~+25 |
Adhesion and elongation of conveyor belt
| Item |
Between Plies
N/mm | N/mm
Between rubber and carcass | Elongation |
Covering thickness
0.8-1.5mm | Covering thickness
>1.5mm |
Longitudinal
elongation at break
% ≥ | Longitudinal elongation
at reference load
% ≤ |
| All the sample average ,N/mm,≥ | 4.5 | 3.2 | 3.5 |
| All samples minimum peak ,N/mm,≥ | 3.9 | 2.4 | 2.9 | 10 | 4 |
| Note: All samples shall not exceed the peak values |
1.Our conveyor belt factory
2.Our production line
3.Our testing room
4.Our produced conveyor belt
5.Our belt application
Cotton conveyor belt
CC conveyor belt is suitable for conveying non-corrosive and
pointless bulk or granular particle or powder materials, such as
coal, coke, sand or cement under normal temperature with light and
thin in construction, high tensile strength, good grooving
performance, small power consumption of plant equipment and energy
saving.
NN conveyor belt
Nylon conveyor belt is characterized by thin in the tape body, good
impact and flexural strength, light weight, fatigue durability, as
well as best bonding strength between layers, thus having a long
lasting service life. The product is suitable for use in the
sectors such as building, port, chemical engineering and mine where
requiring medium-and-long conveying distance, high operating speed
of conveyor-belt and great conveying volume.

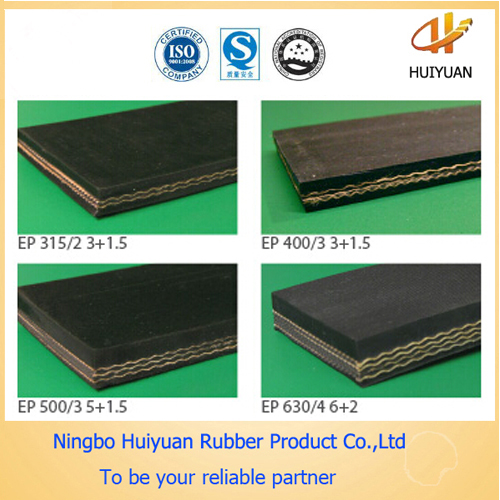

EPconveyor belt
Polyester core conveyer belt is a multi-layer polyester canvas
bonded together by a certain way, from top to bottom coverage of
high strength, good wear-resistant flexible rubber, no special
corrosion for the transmission of small and medium-sized block,
powder, granular and other materials. Applicable to long-distance,
high capacity, high-speed delivery of materials under the
conditions.
Technical data
| Type |
Mpa ≥
| Elongation % | mm2 ≤ | Change Rate of tensile strengh and elong after aging |
| % |
| H | 24 | 450 | 120 | -25~+25 |
| D | 18 | 400 | 100 | -25~+25 |
| L | 15 | 350 | 200 | -25~+25
|
Supporting you NICE QUALITY, CHEAP PRICE, FAST DELIVERY and BEST
SERVICE is our core values. Welcome your inquiry! wuying@nbhyxj.net
