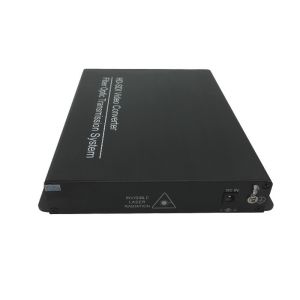

1 BNC Video Interface HD SDI to Fibre Converter , cctv camera video converter 32K / 48KHz Sampling frequency

HD Video Audio Transmission Mini SD/HD over Fiber Optical Extender with RS485 HD-SDI to Fiber Optical Converter FC

Product Description

Mini SDI Over Fiber Optic Extender is dedicated to the HD / SD-SDI video and embedded audio and RS485 data via multimode fiber cables ideal, economical transmission equipment. SDI Over Fiber Optic Extender uses leading digital fiber optic transmission technology, in a single-mode optical fiber’s transmission distance, it transmite a way SD / HD-SDI video signals.In simple, a mini SDI Over Fiber Optic Extender systems, Transmitter for sending, Receiver for reception.PTE292M, SMPTE259M standards, as well as DVB-ASI (, such as a digital television signal formats.

It allows HD-SDI signal to be transmitted up to 60m / 200ft via CAT5/CAT6 cable in a point-to-point configuration. The SDI-UTP Extender supports video bandwidth up to 1.485 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) , widely applied to television facilities and professional video equipment.

Features

• SDI Standard: HD-SDI, SD-SDI
• Up to 50m / 160ft via CAT5e cable
• Up to 60m / 200ft via CAT6 cable
• Supports SDI-SMPTE 259M-C (270Mbps);
• HD-SDI-SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
• LED diagnostics: sync, SDI auto-detection
• 5V~24V DC

Main Features

1) One way HD-SDI fiber transmission high-definition digital video and audio signals

2) SD, HD input automatic detection, support 270Mbit/s - 1.48Gbit/s rate; support the new 1080P HD-SDI format

3) Support SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signal and DVB-ASI signal

4) For reliable transmission by multi-mode or single-mode optical fiber, the single mode fiber 10KM, up to 60KM

5) The built-in cable equalizer for Equalizer, clock regeneration circuit Relocked and cable driver

6) Power and other parameters indicate LED can monitor systemstatus

7) Signal input with automatic cable equalization function, output has a long drive function

Product Description:

SPECIFICATIONS

Product Model	HDSDI
Transmission distance	0~20km(Optional 40km/60km)
Wavelength	1310nm/1550nm
Optical fiber connector type	SC/PC
Transmit power	-10~-3dbm
Fiber Count	1core
Receiver sensitivity	Better than-34dbm
Compatible with standard	Support SMPTE292M, SMPTE259M standard
Rate	Working at 270Mbps ~ 1.5Gbps
Video Interface	1 BNC
Data Interface	1 RS485 industrial terminal
The nominal input and output level	800mVp-p±10%
The nominal input and output impedance	75Ω
Sampling frequency	32K/48KHz
The nominal input and output level	Unbalanced 2V p-p
Operating temperature	0 to 40 Degree Celsius / 32 to104 Degree Fahrenheit
Storage Temperature	-20 to 60 Degree Celsius /-4 to 140 Degree Fahrenheit
Relative Humidity	20~90%RH ( No condensation )
Power requirements	5~24VDC





Connection Diagram
Attention: Insert/Extract cables gently.

Packaging & Shipping

PACKING CONTENTS
1) Main Unit. SDI Over Fiber Optic Extender
2) Manual
3) Power Adapter
