    Benchtop IP Test Chamber , PLC Touch Screen Environmental Testing Equipment

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E710-3
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Benchtop IP Test Chamber , PLC Touch Screen Environmental Testing Equipment

    Automatic Environmental Test Chambers Climatic Tester Water Shower Test Chamber with Ipx5 / Ipx6

    Product Introduction:

    IPX5 / 6 rain test chamber used to test the mobile phone, tablet PC, camera, LCD TV and other high-end electronic products shell seal, simulation in heavy rain, heavy rain and other circumstances, the equipment and components of the performance is good.


    Standard features:

    ItemSpecification
    Internal chamber size(W*D*H)1000*1000*1000mm(can be customized)
    External chamber size(W*D*H)1400*1200*3500mm
    IP CodeIPX5IPX6
    Internal diameter of the nozzle6.3mm12.5mm
    Delivery rate12.5l/min±5%100l/min±5%
    Core of the substantial streamCircle of approximately 40mm diameter at 2.5m distance from nozzleCircle of approximately 120mm diameter at 2.5m distance from nozzle
    Chamber materialInternal: SUS304 stainless steel, external: stainless steel
    Test duration per square meterof enclosure surface area likely to be sprayed1 min
    Minimum test duration3 min
    ControllerPLC touch screen
    Distance from nozzle to enclosure surfaceBetween 2.5m and 3m
    Sample rotatory tableDiameter 500mm, rotation speed adjustable
    PowerAC380V, 50Hz, three phase

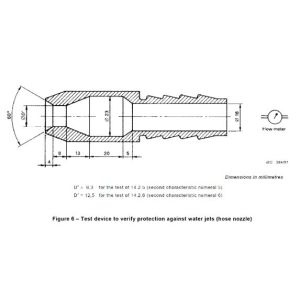

    SPRAY NOZZLE DESIGN DRAWING
