    CPT CLAA070WP03XG 7 inch tft lcd display , industrial display solutions

    Ask Lasest Price
    Brand Name : CPT
    Model Number : CLAA070WP03XG
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    CPT CLAA070WP03XG 7 inch tft lcd display , industrial display solutions

    CPT CLAA070WP03XG 7 inch tft lcd display , industrial display solutions


    CPT CLAA070WP03XG General Features

    Panel Brand :CPT
    Panel Model :CLAA070WP03XG
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :7.0 inch
    Resolution :800(RGB)×1280 , WXGA
    Display Mode :HFFS, Normally Black, Transmissive
    Active Area :94.2×150.72 mm
    Outline :104.32×161.67×4.05 mm
    Surface :Glare (Haze 0%), Hard coating (3H)
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :700:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 60%
    Response Time :30 (Typ.)(Tr+Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :WLED
    Signal Interface :LVDS (1 ch, 6-bit) , 31 pins
    Input Voltage :3.3V (Typ.)

    Our Service

    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing

    • Easy-to-install console, Open Frame chassis-mount display

    • Slim dimensions enable better enclosure designs

    • Multiple mounting options (100mm VESA mount and side brackets)

    • All steel construction provides rugged frame for public use environments

    • Two independent touch points (with Windows 7 OS)

    • Improved power efficiency and reduced consumption

    • TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals


    CPT CLAA070WP03XG Optical Features

    Display Mode :HFFS, Normally Black, Transmissive
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :700 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Color Gamut :60% NTSC (CIE1931)
    Response Time :30 (Typ.)(Tr+Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :Symmetry
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.25/1.39 (Typ./Max.)(9 points)

    Company Strength

    1. ISO9001 certificated, Factory Direct Supplied

    2. RoHS Compliant, Lead Free, Reach Compliant

    3. Competitive Price and Short Lead-time

    4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

    5. Small MOQ Support & Fast Response to Customers

    6. Long Product Life Time

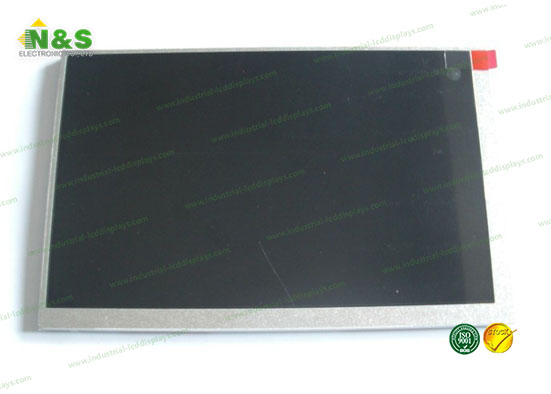

    Details Pictures for CPT CLAA070WP03XG
