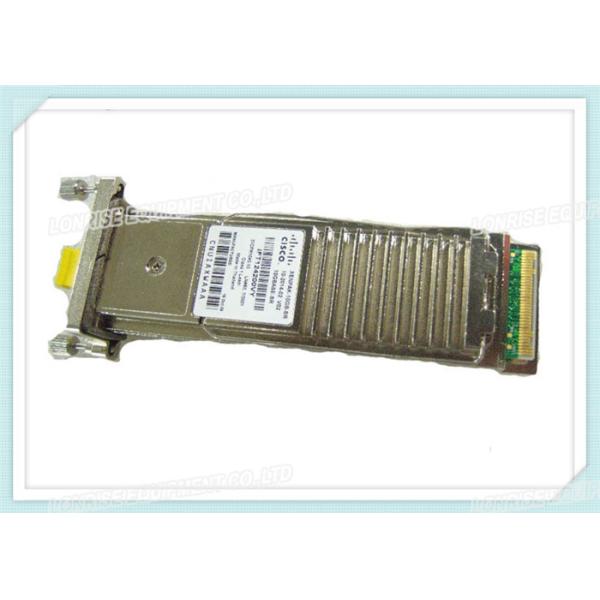

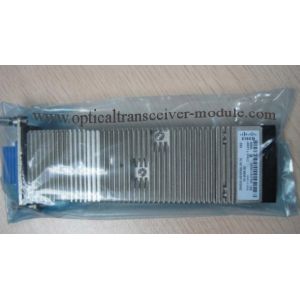

XENPAK-10GB-ER+= 10GBASE-ER 1550nm SMF XENPAK Module with DOM 300M
Transfer Distance
Overview
The range of Cisco® 10GBASE XENPAK modules offers a wide variety of 10 Gigabit
Ethernet connectivity options for data center, enterprise wiring
closet, and service provider transport applications (Figure 1).
Figure 1. Cisco 10GBASE XENPAK Modules
Main features of Cisco 10GBASE XENPAK modules include:
● Supports 10GBASE Ethernet
● Hot-swappable input/output device plugs into an Ethernet XENPAK
port of a Cisco switch or router to link the port with the network
● Provides flexibility of interface choice
● Supports “pay-as-you-populate” model
● Supports the Cisco quality identification feature that enables a
Cisco switch or router to identify whether the module is a Cisco
certified and tested XENPAK module
● Interoperable with respective Cisco 10-Gigabit X2, XFP and SFP+
modules on the same link
Cisco offers six modules in this product family:
● Cisco XENPAK-10GB-CX4: Supports link lengths of up to 15m on CX4 cable.
● Cisco XENPAK-10GB-LRM: Supports link lengths 220m on standard FDDI-grade multimode fiber
(MMF). To ensure that specifications are met over FDDI-grade, OM1
and OM2 fibers, the transmitter should be coupled through a mode
conditioning patch cord. No mode conditioning patch cord is
required for applications over OM3.
The Cisco 10GBASE-LRM Module also supports link lengths of 300m on
standard single-mode fiber (SMF, G.652).
● Cisco XENPAK-10GB-SR: Supports a link length of 26m on standard FDDI grade MMF. Up to
300m link lengths are possible when using 2000 MHz/km MMF (OM3). Up
to 400m link lengths are possible when using 4700 MHz/km MMF (OM4).
● Cisco XENPAK-10GB-LR+: Supports a link length of 10 km on standard single-mode fiber
(SMF) (G.652).
● Cisco XENPAK-10GB-ER+: Supports a link length of up to 40 km on SMF (G.652).
● Cisco XENPAK-10GB-ZR: Supports link lengths of up to about 80 km on SMF. This interface
is not part of the 10 Gigabyte Ethernet standard but is built
according to Cisco optical specifications.
Order Information:
| General |
| Device Type | XENPAK transceiver module |
| Enclosure Type | Plug-in module |
| Approximate Width | 1.4 in |
| Approximate Depth | 4.8 in |
| Approximate Height | 0.7 in |
| Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-ER |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1550 nm |
| Max Transfer Distance | 24.9 miles ( 40km ) |
| Features | Digital Optical Monitoring (DOM) support |
| Compliant Standards | IEEE 802.3ae |
| Expansion / Connectivity |
| Interfaces | 1 x network - Ethernet 10GBase-ER - SC single mode x 2 |
| Compatible Slots | 1 x XENPAK |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Compatibility Information |
| Designed For | P/N: 8-10GBE, 8-10GBE=, 8-10GBE-2PACK=, WS-SUP32-10GE-3B,
WS-SUP32-10GE-3B=, WS-SUP32-10GE-3B-RF, WS-X6704-10GE,
WS-X6704-10GE=, WS-X6704-10GE-RF |
