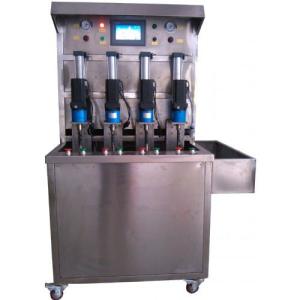

ZYD-T03 Laboratory Shower Hose Mechanical Property Testing Machine
Descriotion:
1. Test speed improved,2times faster than normal test equipment
2. Pressure automatic change regulation 16bar, 4bar, 0.5bar
3. Valve before the seal, seal automatically test partition alarm
4. Accurate and sensitive detection of product leakage, reduce the
risk of traditional methods
5. Atmospheric water flow, water less residue
Function:
1, the spool off state of the 16bar static pressure water into the
part of the seal, the hot water inlet part of the seal, cold and
hot partition seal, not qualified automatic alarm;
2, open the spool to carry out the 4bar dynamic pressure water
test, the observed water status;
3, the bathtub faucet test in the dynamic pressure 0.5bar switch is
working properly; automatic reset faucet test whether the water can
be automatically reset;
4, the equipment has automatic storage function, can save the
record of each test partition seal pressure and qualified, the
pressure and the pressure of high pressure static pressure, and the
statistical number of qualified, unqualified number;
5, with a micro printer, print test results;
6, after the test of water;
7, you can set the pressure of each test, time and other parameters
Equipment double station, a station for testing the face points,
kitchen and kitchen faucet, the other a station for testing the
bath and shower faucet
Operating procedure:
1, the device power plug into the 380V16A power outlet, the 8mm
inlet pipe plug.
2, plug in the power, start test equipment;
3, good for high voltage, medium voltage and low pressure is set
(usually 16bar, 4bar and 0.5bar), control the cold water cavity and
the hot water sealing test pressure holding time (3 s), chit time;
4, the test interface as shown below
5, the tap is placed on a holder, press the clamping button clip
installed products. The following three hand valve are left
position and the right position, clamping and loosening blowing
clamping and loosening;
6, according to the "middle pressure test" on the following board,
the pressure automatically rose to 4bar, this time can open the
valve core observation;
7, if it is automatically reset faucet, turn the switch to the
shower, and then press the first button to close the water, observe
whether the switch will reset the switch;
8, the bathtub faucet in the 4bar dynamic pressure to pull the
switch to the shower position, press the two button, the pressure
will automatically drop to 0.5bar, when the observation switch will
fall;
9, close the valve, according to the third button, the pressure
will instantly and automatically rise to 16bar, respectively, the
cold water cavity and the hot water cavity seal partition test and
seal test, unqualified equipment buzzer will alarm sound, and
displayed on the screen of the unqualified parts;
10, after the test valve open, press the button of the compressed
air blowing, blowing cavity air flow will tap water.
11, enter the password can be modified to modify the settings of
the pressure, time and other parameters. Please carefully modify
the password, if you forget the new password, you need to remove
the touch screen sent to the company to unlock the machine.
Specification:
| No. | Items | parameter |
| 1 | Water pressure set up range | 0.1-16bar |
| 2 | Work station | 2 |
| 3 | Testing speed | 25s/pcs |
| 4 | Leak test accuracy | Leakage 3 drops per minute |
| 5 | Pressure stable range | ±0.01MPa |
| 6 | Diamention | 850*650*1600mm |
| 7 | Voltage | 380V |
| 8 | Running average power | 1.0KW |
| 9 | Machine weight | 150KG |
Usage: All series faucet
