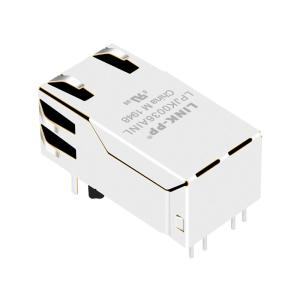

    XRJH-01S-H-H71-570 , LPJK0036AINL RJ45 Modular Jack 1x 1GbE ports

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : XRJH-01S-H-H71-570
    Certification : UL,ROHS,Reach,ISO
    Price : $0.05-$1.28
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 4200K-PCS/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    XRJH-01S-H-H71-570 , LPJK0036AINL RJ45 Modular Jack 1x 1GbE ports

    XRJH-01S-H-H71-570 , LPJK0036AINL RJ45 Modular Jack 1x 1GbE ports
    • LINK-PP LPJK0036AINL 10/100/1000 Full Duplex Connectors
    • Cross XRJH-01S-H-H71-570 Equivalent
    • Complies with requirement of IEEE802.3u standards.
    • Compliance with ROHS requirements.
    • Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃

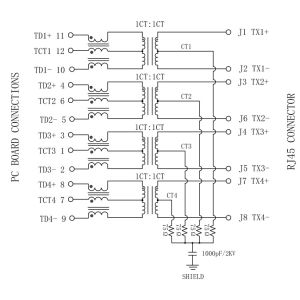

    Turn Ratio(±2%):TX=1CT:1CT RX=1CT:CT
    Inductance OCL350uH MIN/@ 100KHz,0.1V,8mA DC Bias
    Insertion Loss-1.0dB MAX @ 1-65MHz
    Return Loss-20dB MIN @ 1-10MHz
    -16dB MIN @ 10-30MHz
    -12dB MIN @ 30-60MHz
    -10dB MIN @ 60-100MHz
    Cross talk-40dB MIN @ 1-30MHz
    -35dB MIN @ 30-60MHz
    -30dB MIN @ 60-100MHz
    Common Mode Rejection-30dB MIN @ 1-50MHz
    -20dB MIN @ 50-150MHz
    Hipot Test1500Vrms MIN
    Operating Temperature Range0℃ TO 70℃.
