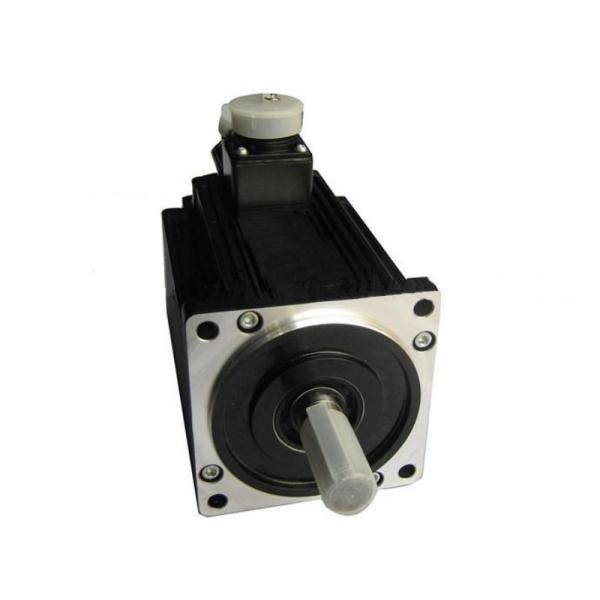

110ST-M04030 AC servo motor 1.2KW 3000RPM 4Nm

    Buy cheap 110ST-M04030 AC servo motor 1.2KW 3000RPM 4Nm from wholesalers

    Buy cheap 110ST-M04030 AC servo motor 1.2KW 3000RPM 4Nm from wholesalers
    • Buy cheap 110ST-M04030 AC servo motor 1.2KW 3000RPM 4Nm from wholesalers

    110ST-M04030 AC servo motor 1.2KW 3000RPM 4Nm

    Ask Lasest Price
    Brand Name : Jingbo
    Certification : CE
    Model Number : 110ST-M04030
    Delivery Time : in stock
    Payment Terms : T/T, Paypal, Western union
    Supply Ability : 999
    • Product Details
    • Company Profile

    110ST-M04030 AC servo motor 1.2KW 3000RPM 4Nm

    110ST-M04030 AC servo motor 1.2KW 3000RPM 4Nm


    Specification:

    Motor model

    110ST-M02030

    110ST-M04020

    110ST-M04030

    110ST-M05030

    110ST-M06020

    110ST-M06030

    Rated power(KW)

    0.6

    0.8

    1.2

    1.5

    1.2

    1.8

    Rated voltage(V)

    220

    220

    220

    220

    220

    220

    Rated current(A)

    2.5

    3.5

    5.0

    6.0

    4.5

    6.0

    Rated speed(rpm)

    3000

    2000

    3000

    3000

    2000

    3000

    Holding torque(N.m)

    2

    4

    4

    5

    6

    6

    Peak torque(N.m)

    6

    12

    12

    15

    12

    18

    Voltage constant(V/1000r/min)

    56

    79

    54

    62

    83

    60

    Torque coefficient(N.m/A)

    0.8

    1.14

    0.8

    0.83

    1.3

    1.0

    Rotor inertia(Kg.m2)

    0.31x10-3

    0.54x10-3

    0.54x10-3

    0.63x10-3

    0.76x10-3

    0.76x10-3

    Line-Line Resistance(Ω)

    3.6

    2.41

    1.09

    1.03

    1.46

    0.81

    Line-Line Inductance(mH)

    8.32

    7.3

    3.3

    3.43

    4.7

    2.59

    Mechanical time-constant(Ms)

    2.3

    3

    3

    3.33

    3.2

    3.2

    Weight(Kg)

    4.5

    6

    6

    6.8

    7.9

    7.9

    Motor length L(mm)

    159

    189

    189

    204

    219

    219

    Encoder line number(PPR)

    2500

    Insulation class

    Class F

    Safety class

    IP65

    The operating of Environmental Conditions

    Temperature: -20°C ~ +40°C Humidity: Below 90%RH No dewing

    Motor winding plug

    Winding lead wire

    U

    V

    W

    PE

    Plug serial number

    .2

    3

    4

    1

    Photoelectric encoder socket (15 pin)

    Signal lead wire

    5V

    0V

    A+

    B+

    Z+

    A-

    B-

    Z-

    U+

    V+

    W+

    U-

    V-

    W-

    PE

    Plug serial number

    2

    3

    4

    5

    6

    7

    8

    9

    10

    11

    12

    13

    14

    15

    1

    Absolute encoder socket (7 pin)

    Signal lead wire

    E-

    E+

    SD-

    0V

    SD+

    +5V

    PE

    Plug serial number

    2

    3

    4

    5

    6

    7

    1

    Please contact the Jingbo technical department if you have other special requirements


    Installation precaution:

    1. Installation/disassembly components coupled to the motor shaft end, do not hit shaft hard to prevent the other side of motor shaft encoder was knocked out bad.

    2. Striving to make the best of its shaft to prevent vibration and bearing damage.


    Installation dimension: unit=mm
