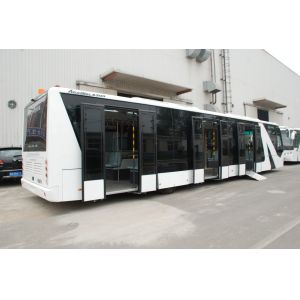

    14 seats with 110 passengers standing area for airport apron bus

    Ask Lasest Price
    Brand Name : Aero ABus
    Model Number : Airport Coaches Cummins Engine
    Certification : CE/ISO9001:2008/AIRPORT EQUIPMENT CERTIFICATE/SGS
    Supply Ability : 12 Units per month
    Delivery Time : 1 months, flexible
    • Product Details
    • Company Profile

    14 seats with 110 passengers standing area for airport apron bus


    14 seats with 110 passengers standing area for airport apron bus


    Quick Detail:


    1. high capacity

    2. High efficient fleet management

    3. Shortest boarding times

    4. Short turn radius


    Specification:


    No.

    Particulars

    Specs

    1.

    Length × Width ×Height

    11650mm×2700mm×3178mm

    2.

    Bus body

    Low carbon alloy steel body with aluminum apron;

    3.

    Wheel base

    6470mm

    4.

    Passenger accommodation capacity

    Up to 77 passengers including thirteen (13) seats, in compliance with IATA specifications: four (4) Passengers per sqm

    5.

    Curb weight

    12250kgs

    6.

    The varied height from passenger cabin floor sill to the ground level

    270mm~340mm subject to embarkation and/or disembarkation of passengers

    7.

    Minimum turning radius

    <13500mm

    8.

    Engine

    4-strok, Cummins engine



    Basic:

    CUMMINS ISDE180-30, EUROIII, 132KW/2500rpm,

    ALLISON 2100



    Normal rated power

    118kW



    Rated speed

    2300 rpm



    Discharge capacity

    4764cc



    Compression ratio

    18.0



    Intake mode

    Turbo-charging intercooler



    Exhaust emission

    EURO III



    Fuel consumption

    ≯215g/kwh

    Less than 30Liter per 100 km



    Dry weight

    520kgs



    Fire unit

    Electromagnetic mechanism



    Generator

    28Volt



    Starter

    6 Kw, 24 Volt

    9.

    Battery

    Battery (2 pcs): 190H52 Lead-acid battery

    10.

    Transmission (standard)

    Allison 2100 automatic transmission, electronic controlled.



    Velocity ratio

    Gear

    ALLISON 2100

    ALLISON T270



    Gear 1

    3.10

    3.49



    Gear 2

    1.81

    1.86



    Gear 3

    1.41

    1.41



    Gear 4

    1.00

    1.00



    Reverse

    4.49

    5.03

    11.

    Volume capacity of vessels

    Fuel tank volume

    (120 + 80)liter



    Anti-freeze fluid

    20 liter



    Engine lubrication system

    14.2 litter



    Gearbox lubrication system

    18 liter



    Main reduction gear of front axle and wheel rim reduction gear

    10 liter



    Front brake

    N/A



    Steering gear

    5 liter

    12.

    Front axle (Driving axle)

    MERCEDES BENZ 733.W14 (right-hand drive)

    MERCEDES BENZ 733.W02 (left-hand drive)



    King-pin angle of toe-in

    King-pin caster angle 0°



    Ratio of master drive:

    7.633



    Wheel rim velocity ratio

    1



    Instructions in detail


    1. The carpets are covered
      • on both sides of separation panels between the driver cabin and the passenger area,
      • on the top of rear wheel room,
      • on the top of air-conditioning package in passenger compartment;
    2. Engine cover is equipped with noise absorbing mats;
    3. The fire extinguishers are equipped in driver cabin.
    4. The warning signs in English language on the each door;
    5. Engine exhaust direction can be diverted to keep passenger away from emissions subject to doors on whichever side are open;
    6. Aluminum alloy rod are installed on the top of the front seats back, on the top of rear wheel bag, and on the top of air-conditioning package in passenger cabin along the direction of vehicle width;
