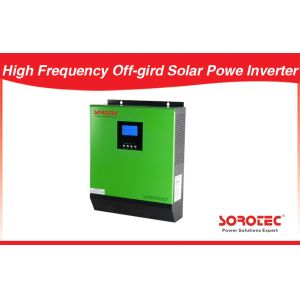

    Wall Mounted Integrated Solar Power Inverters SSP3118C4 1-5KVA

    Ask Lasest Price
    Brand Name : SOROTEC
    Model Number : SSP3118C4 1-5KVA
    Certification : CE,ROHS,ISO9000
    Payment Terms : L/C, T/T
    Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
    Delivery Time : Within 15-30days after receiving your 30% TT deposit
    • Product Details
    • Company Profile

    Wall Mounted Integrated Solar Power Inverters SSP3118C4 1-5KVA

    Wall Mounted Integrated Solar Power Inverter SSP3118C4 1-5KVA


    Key Features:

    1.Pure sine wave inverter

    2.Cold start function

    3.Auto restart while AC is recovering

    4.Overload and short circuit protection

    5.Optional remote panel available

    6.Selectable charging current based on applications

    7.Configurable AC/Solar input priority via LCD setting

    8.Compatible to mains voltage or generator power

    9.Smart battery charger design for optimized battery performance

    10.Parallel operation with up to 6 units only available for 4KVA/5KVA

    11.Selectable input voltage range for home appliances and personal computers


    Full protection:

    Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.


    Applications:

    Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.


    Technical Specification:

    MODELC4 2K-2460C4 3K-2460C4 4K-4860C4 4K-4880C4 5K-4860C4 5K-4880
    Rated Power2KVA/1600W3KVA/2400W4KVA/3200W4KVA/3200W5KVA/4000W5KVA/4000W
    INPUT
    Voltage230 VAC
    Selectable Voltage Range170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
    Frequency Range50 Hz/60 Hz (Auto sensing)
    OUTPUT
    AC Voltage Regulation (Batt. Mode)230VAC ± 5%
    Surge Power4000VA6000VA8000VA10000VA
    Efficiency (Peak)93%
    Transfer Time10 ms (For Personal Computers) 20 ms (For Home Appliances)
    WaveformPure sine wave
    BATTERY
    Battery Voltage24 VDC48VDC
    Floating Charge Voltage27 VDC54VDC
    Overcharge Protection31VDC62VDC
    SOLAR CHARGER & AC CHARGER
    Maximum PV Array Power1500W3000W4000W3000W4000W
    MPPT Range @ Operating Voltage30 ~ 115VDC60 ~ 115VDC
    Maximum PV Array Open Circuit Voltage145VDC145VDC
    Maximum Solar Charge Current60A60A80A60A80A
    Maximum AC Charge Current20/30A30A60A60A60A60A
    Maximum Charge Current60A60A120A140A120A140A
    Maximum Efficiency98%
    Standby Power Consumption2W
    PHYSICAL
    Dimension, D x W x H (mm)100 x 272 x 355
    Net Weight (kgs)77.4
    OPERATING ENVIRONMENT
    Humidity5% to 95% Relative Humidity(Non-condensing)
    Operating Temperature0°C to 55°C
    Storage Temperature-15°C to 60°C
