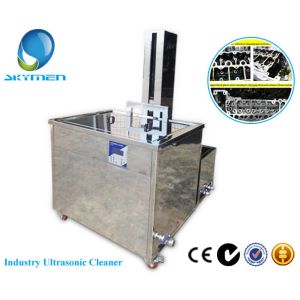

Dual-Frequency Heating Ultrasonic Cleaner Ultrasonic Mold Cleaning
Machines 28KHZ /40KHZ
Application:
SKYMEN specifically designed to clean the internals and externals
of a ultrasonic cleaning machines are used by many manufacturers to
clean injection moulds, dies and tools. ,fast and effectively. With
the unique cleaning techniques this machine incorporates one large
higvehicle radiators, industrial compressor radiator and hydraulic
coolersh powered cleaning tank . Generators control , and pump and
filtration system. Best cleaning the ultimate ultrasonic cleaner
for vehicle radiators,
Ultrasonic Cleaning Machine cleaning effect:
Specification for Brass Musical Instrument cleaning :
| tank size | 1140 x 900x500mm |
| capacity | 500liter |
| ultrasonic power | 4500W |
| heating power | 12kw |
| ultrasonic frequency | 40khz |
| material | SUS304/316L |
| warranty time | 1 year |
Competitive Advantage:
- Material : SUS304/316L with 2mm thickness
- 15 years experience engineer will design the machine for you
- Filtration System: for heavy duty oil removing, cycle cleaning
solvent, prevent second polution and better cleaning effects.
- PCB Board: manufactured by Skymen factory, more stable
Skymen JTS Series:
Skymen
Model No. | JTS-1030 | JTS-1036 | JTS-1060 | JTS-1072 | JTS-1108 | JTS-1144 |
TANK
DIMENSION(mm) | 500x406x500 | 500x460x550 | 700x650x650 | 1000x600x600 | 1000x900x600 | 1200x1000x800 |
OVERALL
DIMENSION(mm) | 680x586x850 | 680x640x900 | 900x850x1000 | 1200x800x950 | 1240x1140x950 | 1440x1240x1150 |
MAX. CAPACITY | 101L | 126L | 295L | 360L | 540L | 960L |
CONSTRUCTION
CASE | SUS 304 (MIRROR SHINING IMAGE AVAILABLE) |
CONSTRUCTION
TANK | SUS 304 / 316L |
ULTRASONIC POWER(MAX.) | 1500W | 1800W | 3000W | 3600W | 5400W | 7200W |
ULTRASONIC
FREQUENCY | 28kHz/40kHz/68kHz/80kHz/120kHz |
MAX. HEATING
TEMP. | 20~80C ADJUSTABLE |
HEATING POWER | 3KW | 4.5KW | 6KW | 9KW | 12KW | 24KW |
TIMER | 0~30min adjustable |
DRAIN | ¾" VALVE |
LID & BASKET | TAKE-OFF / STRUT LID; SUS 304 |
CLEANING TANK’S
POWER
REQUIREMENT | AC220V/380V/415V/440V. 3 |
GENERATOR’S
POWER
REQUIREMENT | AC110V/ 220V / 240V, 1 |
GENERATOR | WITH SWEEP MODE AND REMOTE CONTROL |
FEATURES | MULTI-DIRECTION CASTORS WITH BRAKE;
1 YEAR WARRANTY |
Optional | FILTRATION SYSTEM (PUMP, SUS FILTER,
OIL CATCH CAN) |

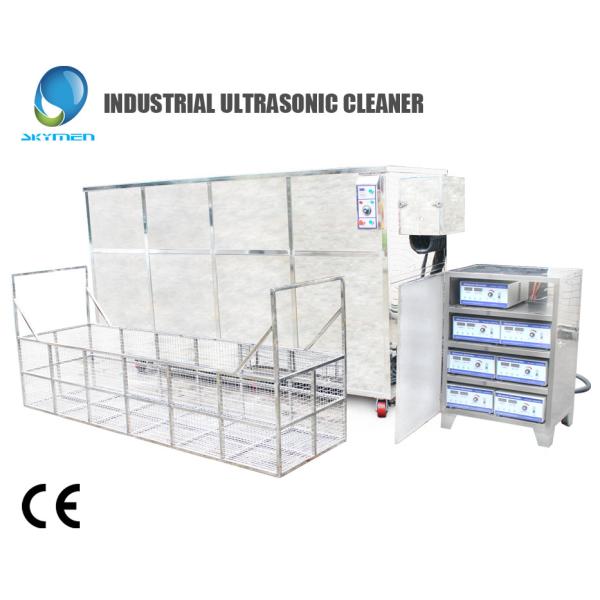

Skymen 3 stage unit (multi-tank) ultrasonic cleaner machine
Industry | Cleaning objects |
jewelry | Jewelry, diamond, gold, silver products, |
machinery | Moulds, precision parts, pressing parts, camera parts, bearing,
hardware tools |
electronics | PCB board, electronic parts, TV parts, computer parts |
Auto industry | engine parts, gear box, shock absorber, auto nozzle, cylinder,
valve |
Dental& Medical | dental tools, medical tools, injector, surgery tools, dropper,
glass container |
Plating& painting | polishing parts, SUS cutter, tableware, plating |
Food industry | Oven tray, boiler, bottles, bottle cap, filters |
Optical& watch maker | optical lens, eyeglass, sunglass, metal, gold, jewelry, diamond,
watch band, watch cover, watch hand |
textile | spinneret plate, rubber parts, plastic molds, toy |
others | seal, flapper, coins, pottery, bank card, IGBT |
FAQ:
Q. What is the length of cleaning time?
Cleaning time will vary, depending on such things as soil,
solution, temperature and the degree of cleanliness desired. Highly
visible removal of soils should start almost immediately after the
ultrasonic cleaning action begins. Cleaning time adjustment is the
easiest (and most often misapplied) factor used to compensate for
process variables. Although new application cycle duration can be
approximated by an experienced operator, it usually must be
validated by actual use with the chosen solution and the actual
soiled parts.
Q. What is the purpose of the unit heater?
The primary purpose of the unit heater is to maintain a solution
temperature between cleaning cycles. The tremendous energy released
by cavitation will generate the heat for cleaning.
Q. How do I know if the unit is cavitating properly?
Most poor cleaning usually results from improper control of one or
more process variable(s); such as choosing the wrong detergent
solution, insufficient heat, or not allowing enough time for the
particular soil to be removed. If you suspect that your ultrasonic
cleaner is not cavitating properly, there are two simple tests you
can perform: the "glass slide" test and the "foil" test.
