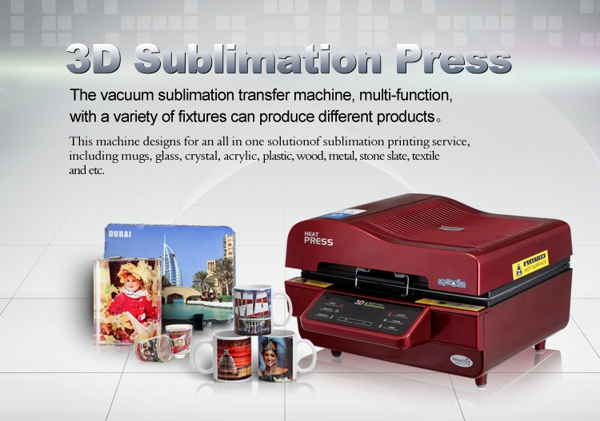

3D Sublimation Vacuum Heat Press Machine
HOT SALE! 3D SUBLIMATION VACUUM MACHINE, HEAT TRANSFER MACHINE.
EXW Price:USD 500/PCS
Specification:
Voltage:220V/110V
Power:2800W
Transferring Area:300*420*110mm (11.8"*16.5"*4.3")
Inspiratory Time: 18S
Vacuum Pressure negative: 0.1KPA
Temperature Range: 0-250 degree Celsius
Time Range: 0-999S
Dimesion: 470*590*290mm (18.5"*23.2"*11.4")
Packing Size: 720*640*420mm (28.3"*25.2"*16.5")
Gross Weight: 25kg
Valume Weight: 40KG
Color:Red,Black,White
Parameter settings for Different Sublimation Blanks
| Items | Quantity | Temperature | Time |
| MUGS | 1pc | 200 degree Celsius | 360S |
| 12pcs | 200 degree Celsius | 480S |
| Phone Case | 4pcs | 190 degree Celsius | 360S |
| Round Plates | 1pc | 200 degree Celsius | 300S |
| 2pcs | 200 degree Celsius | 360S |
| Photo Slate | 1pc | 200 degree Celsius | 360S |
| 2pcs | 200 degree Celsius | 420S |
Products Making:
3D Phone Case, Coated Mugs, Photo Rocks, Glass Frame, Small
Wineglass, T-shirts, Mouse Pads, Plates, Ceramic Tiles, etc.
Features:
1. Safety
Software and hardware dual temperature control design, when one
thermostat failure, the other thermostat automatically work, 15
minutes no operation, automatic shutdown, more secure and reliable.
The machine has applied for CE UL safety certification
2. Efficient
The 300X420X110mm capacity reactor core design capacity, can put 12
mugs at one time, greatly improve work performance.
3. Delicate
Bump dots surface design, greatly improve the heat area, die-cast
aluminum alloy heating, far infrared radiation coating, so that each point of the temperature of the furnace are uniform,
to ensure that the image transfer more delicate and clear. 4. Simple The machine adopts special high impedance contingent,
insulation materials, lightweight and safe, streamlined resistance
heat strips, compact and practical internal structure, simple and
stylish appearance.
5. Sharp move108 clamshell design, easy operation, significant
space saving.
6. Highly intelligent
Work without any key operation, just gently close the cover, The
machine
automatically aspirate, countdown and heat up. When the work is
completed, automatically deflated, All you need is a simple process
to place products and take out the products
7.Humane handling settings interface
for first time use, the temperature and time set-up process is very
easy to understand and easy to learn.
8.Environmental protection
Efficient activated carbon air filter is installed in the machine,
effectively to worry too much toxic and harmful gases generated in
the transfer process, transported to the outdoors through the long
catheter to ensure the health and safety of the operating
personnel.
9. MultifunctionThe machine covers all the functions of the heat
transfer machine, which can transfer mug, glass, crystal, acrylic,
plastic, wood, metal, stone, cloth and so on .with various types of
fixture, can do sublimation transfer on different size and shape of
mugs. Transfer large format, delicate, clear, high color
reproduction, far more than the traditional heat transfer machine.
