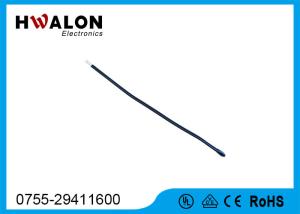

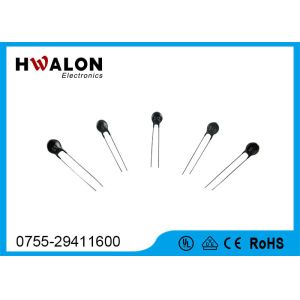

Bead High Precision Temperature Sensor Thermistor , NTC 10K
Temperature Sensor
Specifications:
| envelope material | epoxide, silicone or bakelite |
| resistance at 25 ℃ | from 0.1Kohm to 680Kohm |
| tolerance of resistance | ± 1%, ± 2%, ± 3%, ± 5%, ± 10% |
| B(25/50) | from 2500K to 5000K |
| tolerance of B value | ± 1%, ± 2%, ± 3%, ± 5% |
| head color |
black |
| Conventional lead length | 15mm |
Description:
1. High precision NTC thermistor sensor
2. Wide operating temperature range: -40℃ ~125 ℃
3. Small size
4. fast response
5. It used for temperature measurement.
6. head shape: triangle or rectangle
Applications:
1. Home appliances (air-conditioner, refrigerator, electric fan,
electric cooker, washing machine, microwave oven, drinking machine,
CTV, radio, immersion heater);
2. Computers;
3. Liquid level sensor.
4. Digital thermometer;
5. Battery charger;
6. Electric table-board;
7. Automotive electronics;
Competitive Advantage:
Rohs compliant
small size, fast response
high stability steady
excellent thermal cycle endurance
moisture resistant
superior solderability and resistance to soldering heat shock
-40℃ ~125 ℃ operating temperature range
wide resistance range
good quality of coherence and interchange
bead high precision NTC temperature sensor thermistor in UPS or
home appliances 10K 3950 1% 3% 5%
