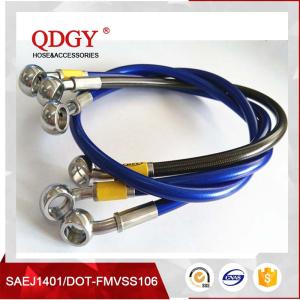

ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose

    Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers

    Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers
    • Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers
    • Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers
    • Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers
    • Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers
    • Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers
    • Buy cheap ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose from wholesalers

    ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose

    Ask Lasest Price
    Brand Name : QDGY
    Model Number : GSG111
    Certification : DOT SAE J1401 FMVSS106,TS16949,ISO9001 ...
    Price : USD0.90/PC
    Supply Ability : 9000000PCS PER YEAR
    Delivery Time : 7 WORKING DAYS
    • Product Details
    • Company Profile

    ISO9001Certificated DOT FMVSS106 approved 1/8 size racing car and racing motorcycle stainless steel braided hose

    Product Description

    --Product Descrption---

    1/8 SAE J1401 standard colored stainless steel braided brake hose, braided brake line, motorcycle brake hose

    Stainless steel braided brake hose Specifications:

    QDGY Part NO.Inner DiameterOuter DiameterOuter layerStainless steel braidInner layer
    GSG0201/8"(3.2mm)0.413"(10.5mm)PVC304 stainless steel/PDFE
    GSG0263/16"(4.8mm)0.492"(12.5mm)
    GSG0281/8"(3.2mm)0.255"(6.5mm)no covering
    GSG0243/16"(4.8mm)0.3"(7.6mm)

    Stainless steel braided brake hose Features:

    • 304 stainless steel braid reinforced hose
    • Meets FMVSS-106 and SAE J1401 specifications
    • Every brake hose pressure tested to 3000 psi( 207 bar or 20.7Mpa )
    • Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
    • Temperature range -73°C to 232°C
    • Compatible with DOT3,DOT4 and DOT4+ brake fluides

    Avaliable PVC /TPU color covering :

    1/8 SAE J1401 standard colored stainless steel braided brake hose, braided brake line, motorcycle brake hose

    Application:

    For use in braking system of the vehicle.

    These Hoses are lined and are compatible with all brake fluids and feature a braided stainless outer covering to resist abrasion and corrosion. These lines are designed to withstand high pressure and are very flexible and can be used in the tightest of situations. These hoses can be used for many other applications such as gauge, turbo and vacuum lines

    Production under ISO 9001:2008 and CE control. High quality product and customer's

    satisfaction is our pursuit. Good faith cooperation. Bright future.

    A reinforcement 304/316 stainless steel wire cover adds strength and durability to withstand high working pressures and harsh environments.Burst pressure reaches to 12,000 psi.


    Other Products

    Brake Hose Fittings

    91.8% Response Rate

    Brake Hose Assemblies

    91.8% Response Rate

    braided brakae lines

    91.8% Response Rate

    Making all kinds of fittings making rubber brake hose

    Crimping brake hose assembly Making 100% test before shippment

    Making 100% test before shippment

    Our Service

    High quality

    Passed the ISO9001:2002 quality system authentication and ROHS authentication.

    Enough Stock

    Enough stock for your urgent requestment,more quantity will arrange shortly.

    Conveniently Shipment Type

    Qingdao port(Chingtao port) is only about 30 minitues from our factory.
    Qingdao airport is only about 40 minitues .
    Customer Photo
    Why chose us?

    Rubber Flexible brake oil hose line banjo fitting 10MM hole

    √Famous trademark of China
    √Passed TS16949,ISO9001,DOT...
    √National enterprise abiding by contract and keeping good faith
    √National key high-tech enterprise
    √Top ten influential brand of China brake hose and fittings industry
    √First place in production and sales of brake hose and fittings in China
    √ISO quality system certificate enterprise
    √Professional sales teams ,technical engineers and pratical workers,safety

    Rubber Flexible brake oil hose line banjo fitting 10MM hole

    Rubber Flexible brake oil hose line banjo fitting 10MM hole

    What can I do for you?
    1.Delivery time:30days after your deposit, which also will be on basis of your order.
    2.Warranty:12 months.
    3.Payment: 30% in advance by T/T 70% before shipment,other payments can be acceptable by negotiation.
    4.Designing factory,technical support project.
    5.Before sale service,middle sale service ,after-service will be supported
    6.Related hose ,tube ,end terminal fittings,accessories and so on for sale.
    7.All necessarry documents .

    Packaging:

    QDGY common package: PVC bag in carton box with QDGY logo

    Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special

    package

    Rubber Flexible brake oil hose line banjo fitting 10MM hole

    Lead time:

    For fitting: common fitting within 30 days;special fitting within 40 days.

    For brake hose: wihithin 20 days.

    For brake hose assembly: within 40 days.

    Please noted: Exact lead time is based on details order ,please contact with us for the details information.

    Shipping:

    Qingdao port(Chingtao port) is only about 30 minitues from our factory.

    Qingdao airport is only about 40 minitues .

    Conveniently by air or by ocean with cheaper freight fee.

    Friends from India

    Visiting our factory for brake hose,brake hose fitting and brake hose assemlbies.Satisfy to our quality control and good product very much.We established the good cooperation more than 10 years.

    Friends from Singapore

    Visiting our rubber brake hose factory,inspecting every production process and give us a high approvement.

    Friends from Russia

    Visiting our brake hose assembly factory.They love our company mission:To supply safety & credit to all the customers.



    Testing Equipment & Test report:

    Burst Pressure test Machine,Hot & Cold test machine,Tensile test machine,Valumeteric expansion test machine ,Slat Spray test machine,Flex whip test machine.... We supply whole SAE J1401 brake hose Test process ,and stricly high quality control system promote us to go to futher bright future,if you want high quality and reasonable price ,find us,we will satisfy you.

    Test Items
    Test Condition
    Standard
    Test Results
    ID
    Normal
    3.2mm
    3.15~3.45mm
    OD
    Normal
    10.5mm
    10.30~10.70mm
    Expansion
    1000psi
    0.33cc/ft max.
    0.14~0.16cc/ft
    1500psi
    0.42cc/ft max.
    0.20~0.22cc/ft
    2900psi
    0.61cc/ft max.
    0.41~0.43cc/ft
    Burst

    4000psi×2min;pressure rated 25,000±10,000psi/min

    >7000psi No seepage
    >10,500psi
    Whip
    235~250psi
    >35h
    >70h
    Tensile
    tensile speed:218±3mm/min
    >1446N
    2400N
    Cold Bend
    -45°C ~-48°C× 72h, 3-5s,bending180°
    No cracking
    No cracking
    Ozone
    100pphm×70h×40°C, 7X
    No cracking
    No cracking
    Impulse
    146°C 1±0.1min at 1600psi+70
    >7000psi No crack
    >7500psi
    Compatibility
    120°C × 70h
    >7000psi No seepage
    >8800psi
    Salt Spray
    5%NaCl, 24h,water cleanout in 35°C
    No red rust
    No red rust
    Water Aging
    Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min
    >7000psi; >35h; >1446N
    >10250psi;>60h; >2200N

    Welcome to our facotry,you are our best friends.

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory.

    Q: How long is your delivery time?

    A: Generally it is 15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?

    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us as below:

    Q1: Waht kinds of main rubber hose can product?

    A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose, brake hose, s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...

    Q2: What size of brake hose can you supply?

    A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")

    Special size: 3.2x11mm...or your request size

    Q3: Can you print the words(line) as our requirement?

    A: Yes,we do provide embossed and printing marking with different color ,as your requirement.

    Q4: What kinds of fitting can product?

    A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...

    Q5: How many types of brake hose do you product?

    A: Brake hose, braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...

    Q6: What is my order's delivery date?

    A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website www.qdgybrakehose.com,we will reply you within 24 hours.


    How to contact us :

    Send your Inquiry Details in the below for free sample,Chlick"contact now " Now!


    Rita

    Sales Manager
    empolder(at)qdgybrakehose.com

    MSN: qdgy_rita(at)hotmail.com Skype: qdgyrita
    Website:http://www.qdgybrakehose.com
