SX011848,SX011860 Thin-walled Cross Roller Bearings for Robot P2 P4

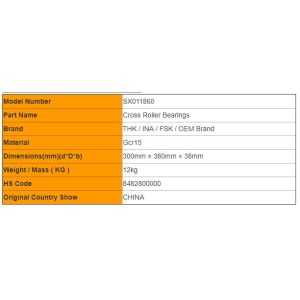

SX011860 Bearings Specification :
Model Number | SX011860 |
Part Name | Cross Roller Bearings |
Brand | THK / INA / FSK / OEM Brand |
| Material | Gcr15 |
Dimensions(mm)(d*D*b) | 300mm × 380mm × 38mm |
Weight / Mass ( KG ) | 12kg |
HS Code | 8482800000 |
Original Country Show | CHINA |
SX Thin-walled Cross Roller Bearings Detailed Pictures :
Other Types of SX Thin-walled Cross Roller Bearings
| Main dimensions | basic load rating (axial) | Basic load rating (radial) | weight |
|
| Identification number | | | Roller pitch circle diameter Dp | | | r | Ca | Coa | Cr | Cor | Kg |
| | | width | Greasin | kN | kN | kN | kN |
| ID | OD | B B1 | hole | | | | |
| d | D | | S | | | | |
| SX011814 | 70 | 90 | 80 | 10 | 1.2 | 0.6 | 18 | 60 | 12 | 30 | 0.3 |
| SX011818 | 90 | 115 | 102 | 13 | 1.2 | 1 | 26 | 96 | 17 | 47 | 0.4 |
| SX011820 | 100 | 125 | 112 | 13 | 1.2 | 1 | 28 | 106 | 18 | 52 | 0.5 |
| SX011824 | 120 | 150 | 135 | 16 | 1.5 | 1 | 41 | 153 | 26 | 75 | 0.8 |
| SX011828 | 140 | 175 | 157 | 18 | 1.5 | 1.1 | 64 | 237 | 41 | 116 | 1.1 |
| SX011832 | 160 | 200 | 180 | 20 | 1.5 | 1.1 | 69 | 272 | 44 | 133 | 1.7 |
| SX011836 | 180 | 225 | 202 | 22 | 2 | 1.1 | 98 | 381 | 63 | 187 | 2.3 |
| SX011840 | 200 | 250 | 225 | 24 | 2 | 1.5 | 106 | 425 | 68 | 208 | 3.1 |
| SX011848 | 240 | 300 | 270 | 28 | 2 | 2 | 149 | 612 | 95 | 300 | 5.3 |
| SX011860 | 300 | 380 | 340 | 38 | 2.5 | 2.1 | 245 | 1027 | 156 | 504 | 12 |
| SX011868 | 340 | 420 | 380 | 38 | 2.5 | 2.1 | 265 | 1148 | 167 | 563 | 13.5 |
| SX011880 | 400 | 500 | 450 | 46 | 2.5 | 2.5 | 385 | 1699 | 244 | 833 | 24 |
| SX0118500 | 500 | 620 | 560 | 56 | 2.5 | 3 | 560 | 2538 | 355 | 1244 | 44 |
The Other Bearings We Do:
| Hot Sales in our company |
| 1. deep groove ball bearing
6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS |
| 2. spherical roller bearing
22200,22300,23000,24000,23100,24100,CA,CC,E,W33 |
| 3. cylindrical roller bearingN,NU,NJ,NN,NUP,E,ECP,ECM,ECJ |
| 4. taper roller bearing 30200,30300,32200,32300,31300,32000 |
| 5. Aligning ball bearing 1200,1300,2200,2300, |
| 6. needle roller bearing
NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN |
| 7. thrust ball bearing 51100,51200,51300,51400,E,M |
| 8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C |
| 9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP |
Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required tofit shaft
Our Service :
1. Highest quality and most competitive price----we are the only
one manufacture who adopts import raw materials. Low bad rates, is
just 0.1%. It is amazing, and with cheap price and guaranteed
quality.
2. Delivery fast -----Goods be sent out within 3 to 7 days based on
order quantity.
3. Professional-----We are special in source and sells, as
development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely.
Delivery and update information on time. Trust, good quality and
service are the basic of long term business.
About Us:
1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10
years.300 bearing types,15 million sets items ar produced yearly
and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one
hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as
Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball
Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as
your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more
reasonable price all over the world. Customers could receive good
quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your
drawing requests and offer in-house test report by professional
engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and
experienced engineers for more than 10 years.We test bearings one
by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than
12hours a day, 7 days a week offering you different bearing
solutions for you.
We are glad to receive any comments from all the world by email,by
call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications
FAQ
 | Q:Are you a trader or manufacturer? |
| A:We are factory specializing in all kind of bearings. We can give
you the best price and better service. |
| Q:What is your delivery time? |
| A:Sample order: Immediate delivery , bulk order: usually 30 days. |
| Q:Can i request sample? |
| A:Of course , sample is ok and we can give you a sample by free. |
| Q:What's the shipping way? |
| A:According to YOUR demands. |
| Q:Can you accept OEM or ODM? |
| A:Yes, of course. logo is also acceptable. |
| Q:How is quality controlled? |
| A:Quality is the key ! |
| Our QC team and engineer team works through all the process from an
order placed to shipped. |
| Q: Can I come for a visit? |
| You are welcome to visit our factories , office and showroom !
Please contact our reception and we will help you to make a
schedule. |
SX011848,SX011860 Thin-walled Cross Roller Bearings for Robot P2
P4 , Get Cheap Price from China Bearing Factory Now !
Contact With Us Freely
