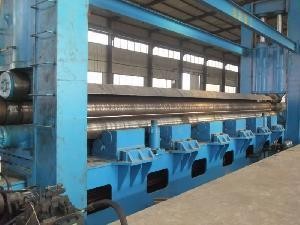

    Diameter 813 mm Oil and Gas Pipe Roll Forming Machine with Hydraulic 3 Rollers Rolling Machine

    Ask Lasest Price
    Brand Name : LUOLE
    Model Number : LPPR11-30x12000
    Certification : CE / ISO
    Price : Discuss in letters
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Diameter 813 mm Oil and Gas Pipe Roll Forming Machine with Hydraulic 3 Rollers Rolling Machine

    Diameter 813 mm Oil and Gas Pipe Roll Forming Machine with Hydraulic 3 Rollers Rolling Machine


    Hydraulic plate roll forming machine for oil and gas pipe (HDLW11G) is our new patent product, it include below technology:
    1. Upper roll use the back deformation method to eliminate the deflection in manufacturing process.
    2. For the pressure mode at the both ends of the upper roller adopt more than one set of the oil tank, oil cylinder fixed, cylinder movements lead roll seat, in order to effectively use space, increase the material utilization, greatly reduce the overall weight of the equipment.
    3. When discharging the products, it is from the inside of the rack without to turnover and reset, enhances security.
    4. All of the discharging of the products all use the automatic cylinder driver(another patent technology of our company), suitable for line production.


    ModelBending thickness(mm)Max plate width(mm)Diameter of upper roller(mm)Rolling Diameter(mm)Main motor power(kw)
    LPPR11G-16*120003~1612000300317~80055
    LPPR11G-20*120003~2012000350406~140075
    LPPR11G-30*120004~3012000500610~160090
    LPPR11G-40*120005~4012000560813~1800150
