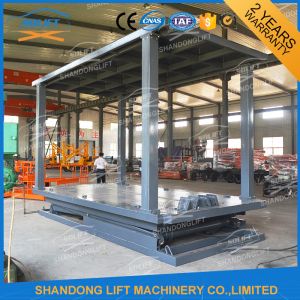

- The Double Scissor Lift Table can be used to lift car with
different levels, suitable for car moving
between stairs, from basement to first floor, to second floor, or
to third floor.
- Operation is easy. There are 2 sets control system installed on
the scissor hydraulic auto car lift ,
1 control box below, and 1 hand controller on safety rail that can
be operated on work platform.
The frequent models we supplied for our clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The Double Scissor Lift Table can be customized as your detailed
size. |
Parts showing:
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency
occurs.
2) The safety rails to guarantee safety of the cars above the
platform.
3) The limit switch system helps Double Scissor Lift Table to stop
at accurate position.
4) Electricity leakage protection device is equipped on, all
electric components are CE certified.
5) All the Double Scissor Lift Table are passed 1.2 times loading
test before leaving factory.
The workshops:
The Spare Parts:
Drive Motor,Hydraulic system: 380V/5.5kw
High Precision Hydraulic Cylinder: 110*4sets;
Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
Controller: 1 control box below, three buttons up down and stop,
Very convenient and
simple; 1 control panel above platform
Platform Material: 120mm*60mm rectangular tube +6mm checkered iron
Explosion-proof lock valve to avoid a sudden drop if emergency
occurs.
Certificates:
Our services:
1) We can design the Double Scissor Lift Table as per your
requirement.
2) The most suitable Double Scissor Lift Table will be recommended
to you once we got your
requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and
maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human
factors faults during warranty
time.
8) Supply 24-hours technical assistance by email, telephone or
other communication online.
9) We could reply you in 2 hours after received your any questions
even on weekend and
holiday.
Engineers are available to your country if necessary.
Welcome to visit our factory!
