| Brand Name : | Trumony |
| Model Number : | TR- 4343/3003+0.5%Cu |
| Certification : | ISO1901-2008 |
| Price : | Negociable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 800,000 per a year |
| Delivery Time : | 30 working days |

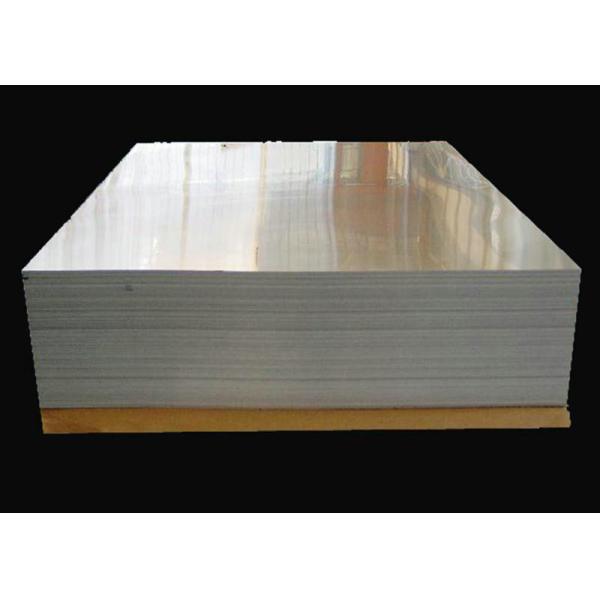

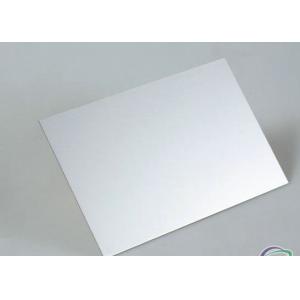

Alloy 4343/3003+0.5%Cu Cladding Ratio 8% Aluminium Heat Exchanger Plates For Auto Radiator
Quick Details
| Products name | Alloy | Thickness | Width | Temper | Cladding Rate | Applicate | |
| 1 | Aluminum Heat Transfer coiled plate | 4343/3003/7072 | 1.5mm | 1020mm | HO | 8% | Radiator |
Chemical Composition
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | - | 0.1 | 0.05 | 0.03 | 1 |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | - | 0.2 | - | 0.05 | 1 |
Produce capability
Temper | Tensile Strength ( Mpa ) | Yield Strength ( Mpa ) | Elongation ( %) |
HO | 95-135 | > / = 35 | > /= 20 |
H14 | 140 - 185 | > / = 125 | > / = 3 |
Application: Can be used in a various of heat exchanger constructions what the basic function is to efficiently transfer heat. Also this sheets can be used for evaporator and condenser in most residential, automotive ,and commercial air conditioning units and in humidifiers and etc.

|
