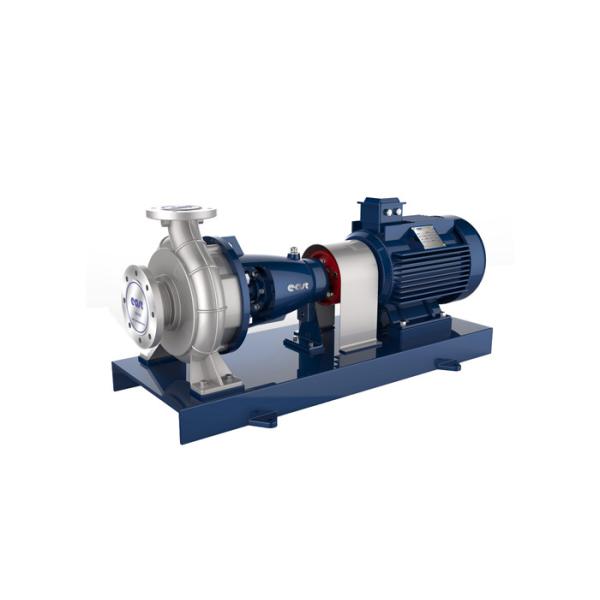

Wide Range Capacity Chemical Process Pump With Heavy Duty Structure
Description:
Chemical process pump is a centrifugal pump of horizontal, single
stage, single suction, cantilever design, its performance
parameters conform to ISO2858. Adopting advanced hydraulic design,
the pump processes higher hydraulic efficiency, and it is an energy
saving product. In the design of structure, by referring to
American ANSI standard, the shaft diameter is increased and
cantilever ratio is shorten to eliminate the shortages that the
pump’s shaft breaks frequently, thus operational stability
improves, maintenance fee and operational cost decreases.
Feature:
The pump cover is fixed on the intermediate support, and the pump
cover is clamped in the middle by coupling between pump body and
intermediate support. On the pump body, water is input axially and
output radially. Support feet can be fixed on the base directly.
The suspended parts are fixed onto the intermediate support through
the rabbet, and are supported onto the base by suspended frame. To
make it convenient to disassemble, the prolonged coupling is
designed, so that it is unnecessary to disassemble the coupled
input & output pipes during check and maintenance. To pump body and
motor, only by disassembling the intermediate coupler of the
prolonged coupling, users are able to screw out rotor part for
check and maintenance, which is a conventional structural pattern
in the world.
Application:
Soda and inorganic salts: ammonia salt blending, soda manufactured
by ammonia soda process, pure soda, caustic soda manufactured by
diaphragm process and ion exchange membrane process, chloride and
hypochlorite, soda sulfate, hydrogen peroxide, etc.
Metallurgy: electrolyte of electrolytic copper and nickel, sodium
aluminate liquid for aluminum production, acid for cobalt
production, or slurry for zinc production, ammonium vanadate for
vanadium production, acid and thiocarbamide liquid for gold
production, etc.
Iron and steel industry: electroplating, souring, electrophoretic
painting, etc.
Acid-making industry: hydrochloric acid, nitric acid, phosphoric
acid, phosphoric acid pulp, acetic acid, etc.
