1.Material is aluminum 6061-T6;
2.Got CE and SGS certifications;
3.Can be widely used in
performances,weddings,exhibitions,concerts,conferences,parties,celebrations
and so on.

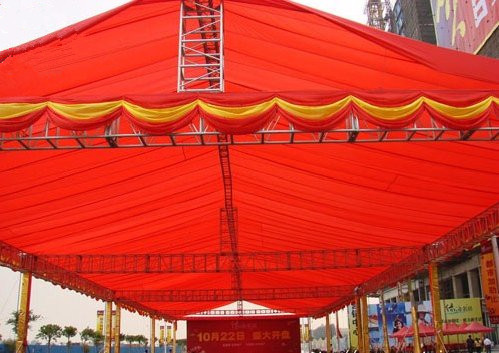

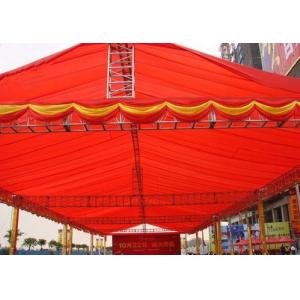

Wholesale Aluminum Square Truss system With Roof
Material:aluminum 6061-T6
Type:Screw truss,Spigot truss
Length available:0.5m to 4m,it depends on your request.
Certification:CE,SGS
Usage:Holding events
Application:Wedding,Party,Concert ,Conference,
Exhibition,Performance.
Spigot truss commonsize:200mm*200mm,
289mm*289mm,389mm*389mm,450mm*450mm,500mm*500mm,500mm*600mm,520mm*720mm,600mm*760mm
Take spigot truss SQU W389 for example:
Type specification:SQU W389
Size:389mm*389mm
Type:Spigot truss
Largest span:14m
Maximum load-bearing:500kg
Main tube:50mm*3mm
Brace tube:30mm*2mm
Inclined pipe:25mm*2mm
Screw truss common size:200mm*200mm,
300mm*300mm,400mm*400mm,450mm*450mm,500mm*600mm,500mm*500mm,520mm*760mm,600mm*760mm,760mm*910mm
Take Screw truss SQU 450 for example:
Type specification:SQU 450
Size:450mm*450mm
Type :Screw truss
The largest span:14m
Maximum load-bearing:510kg
Main tube:50mm*3mm
Brace tube:50mm*2mm
Inclined pipe:25mm*2mm
Different size the largest span and maximum load-bearing are
difference.
The size can be customized according to your need.
Our company is specializing in aluminum spigot truss,aluminum screw
truss,aluminum circle truss,tent and aluminum flexible stage with
more than ten years experience and 3000 square meters real factory.
If you have any interest ,just feel free to contact me.
Terms of payment:By TT,receive 30% deposit in advance,the balance
to be settled before shipment.
Delivery time:7 days after receive 30% deposit.
