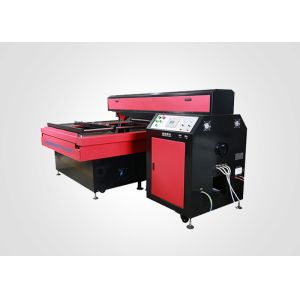

6000mm/Min Cutting Speed Plastic PVC Board Plywood Die Board Laser
Cutting Machine
(Model: PEC-0909 1215 1218)
★ Description
Die board Laser Cutting Machine designed by Perfect Laser is
specialized in cutting die board up to 20mm-25mm, with high
efficiency, excellent quality, low maintenance and low running
cost, widely applicable for packaging, advertising Industry.
★ Product Features
1. Auto Following and Focus System, key elements to successfully
cut die board, can automatically senses the distance from cutting
head to die board being cut and adjust the focus distance to keep a
good cutting quality.
2. Install 2pcs Chinese Top Quality 150W CO2 laser tube, the watt
is 1/10 of larger power cutting machine, low power consumption.
3. Advanced double laser heads coaxial cutting technology, which
can cut both sides of the die board in the same axle, enhance the
whole process efficiency.
4. Germany Imported ball screw rod and Taiwan linear guide rail,
matched two-dimensional accurate working table insure the high
stability of the cutting performance.
5. Tempering heat treated lathe bed, which isn’t easy to be
deformed.
6. The thickness of 15MM, 18MM, 20MM, 25MM die-board can be cut
arbitrary width, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform,
consistent from top to bottom seam. Once turned on, the machine can
work without waiting time.
7. Cut directly with compressed air, no need to buy any other
inactive gas, greatly lowered the users operation cost.

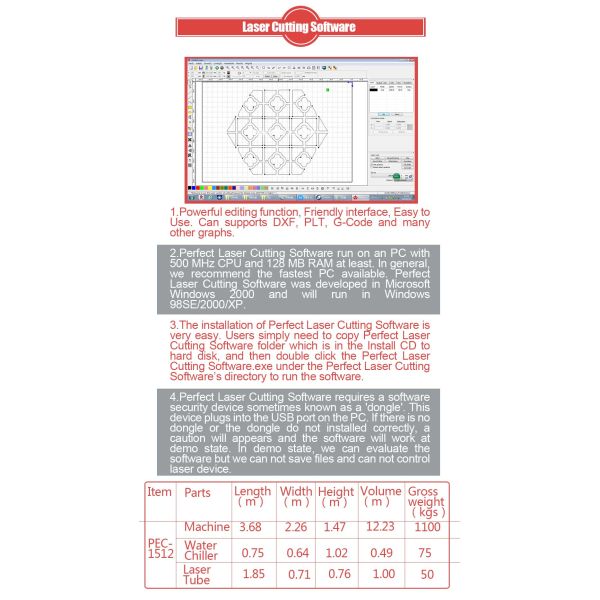

8. Matched Professional software is particularly designed and
written for engraving and cutting, with high compatibility, support
any computer operating system.
9. Easy Operation, Stable performance and applicable for nonmetal
processing industry.
★ Application
Available Materials
It’s mainly used in thick MDF cutting, wood cutting, bamboo
cutting, plywood cutting. It also can be used for acrylic cutting,
organic glass cutting, plastic cutting, PVC board cutting,
plexiglass cutting etc. materials cutting.
Application Industry: packages, advertisement, handicrafts and
other industries.
★ Specifications
| Model | PEC-0909 | PEC-1215 | PEC-1218 |
| Cutting Table Size | 900×900mm | 1200×1500mm | 1200×1800mm |
| Laser Type | CO2 Glass Laser Tube |
| Lifetime of Laser Tube | W8:≥10000 Hours W6:>15000 Hours |
| Cooling Mode | Water Cooling and Protection System |
| Cutting Speed | 0-6000mm/min |
| Repeated Position Precision | ±0.01mm |
| Maximum Cutting Depth | 22mm |
| Cutting Width | 0.35mm - 0.75mm Adjustable >0.75mm Adjustable |
| Support Format | HPGI,PLT,AI,DXF etc. |
| Controlling Software | Hangzhou Times |
| Fixture Type | Pneumatic |
| Compatible Software | Core Draw,Auto CAD,Photoshop |
| Driving System | Standard:Domestic Motor Optional:Japan Panasonic Servo Motor and Drive |
| Machine Power | ≥7000W |
| Working Voltage | AC 220V(+/10%)50-60Hz |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 5-95% |
★ Optional Items
Rotary System: This is used for cutting round pipe.
Air compressor + dryer: This equipment is needed when using
compressed air which is the most economic way compared with N2 and
O2.
★ Sample Shows
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
★ Competitive Advantages
1. We offer high quality products at competitive price in quick
delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
