Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen

    Buy cheap Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen from wholesalers

    Buy cheap Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen from wholesalers
    • Buy cheap Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen from wholesalers
    • Buy cheap Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen from wholesalers
    • Buy cheap Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen from wholesalers

    Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen

    Ask Lasest Price
    Brand Name : AUO LCD Panel
    Model Number : G104XVN01.0
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen

    Antiglar 10.4 Inch TFT LCD Panel PSA Normally Black G104XVN01.0 1024 * 768 EPD Screen


    Applications:


    Mainly Used in Closed-Circuit Surveillance Systems

    Car Video, PC Operating Systems

    Vehicle Navigation Systems Supporting Display

    Can Also be Applied for Industrial Automation

    Medical Machine Equipments

    Electric Power

    Petrification

    Monitor

    Navigation

    POS, ATM and Instrumentation Display Systems


    Quick Detail:


    <

    AUO G104XVN01.0
    General FeaturesPanel Brand :AUO
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :10.4 inch
    Resolution :1024(RGB)×768 , XGA
    Display Mode :PSA, Normally Black, Transmissive
    Active Area :210.43×157.82 mm
    Outline :238.6×175.8×7 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :470 cd/m² (Typ.)
    Contrast Ratio :3000:1 (Typ.)
    Display Colors :262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60%
    Response Time :20/10 (Typ.)(Tr/Td)
    Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :2 strings WLED Embedded (LED Driver)
    Signal Interface :LVDS (1 ch, 6/8-bit) , 30 pins
    Input Voltage :3.3V (Typ.)
    Backlight SystemLamp Position :Edge light type
    Lamp Type :WLED
    Lamp Amount :2 strings
    Lamp Shape :2 strings
    Lamp Life Time :80K(Typ.) (Hours)
    Lamp Replaceable :No
    Lamp Voltage :29.7/32.4V (Typ./Max.)
    Lamp Current :80mA (Typ.)
    Lamps Power Consumption :4.75W (Typ.)
    Interface Type :Connector

    Trade Terms:


    Payment terms: 100% by T/T when order confirmed

    Lead time: 2-5 working days according to the order quantity

    Sample lead time: within 3 working days after we get payment.

    The price based on FOB Shenzhen,we will offer best discount according to order quantity.

    Warranty:offer free spare parts within ONE year.

    Offer OEM service for batch orders,to print logo and design box.

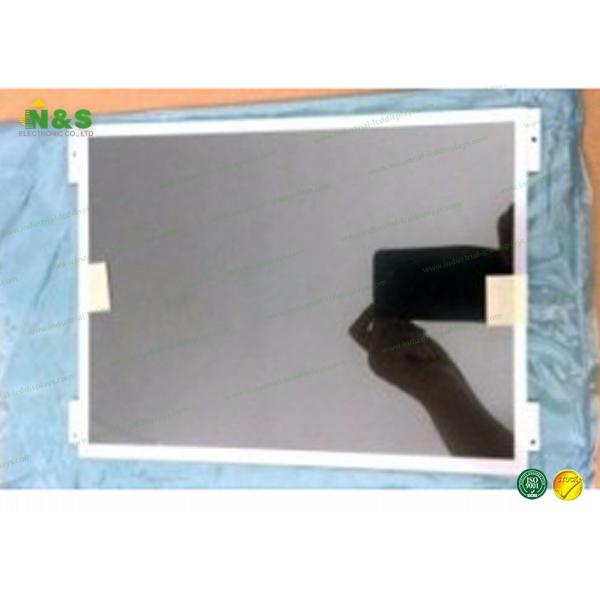

    Pictures of AUO G104XVN01.0 Display:
