    Antireflection 9.7 TFT Display Modules LP097X02-SLEA , 160g LCD LG Monitor For Automobile

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LP097X02-SLEA
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS Per Day
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    Antireflection 9.7 TFT Display Modules LP097X02-SLEA , 160g LCD LG Monitor For Automobile

    9.7 inch LP097X02-SLEA 600:1 Antiglare TFT display modules , LG LCD Panel


    Specification of 9.7" tft lcd :


    Panel Size : 9.7 inch
    Dot Resolution : 1024(RGB)×768 (XGA)
    Pixel Configuration : RGB Vertical Stripe
    Pixel Density : 132 PPI
    Aspect Ratio : 4:3 (H:V)
    Form Factor : Flat Rectangle Display
    Dot Pitch : 0.064×0.192 mm (H×V)
    Pixel Pitch : 0.192×0.192 mm (H×V)
    Weight : 160g (Max.)
    Surface : Glare (Haze 0%), Hard coating (3H), Antireflection
    Active Area : 196.608×147.456 mm (H×V)
    Bezel Area : 201.40×152.26 mm (H×V)
    Outline Dimension : 210.35×166.25 mm (H×V)
    Outline Depth : 3.4/5.95 (Max.) mm
    Holes & Brackets : Face mounting holes (8 pcs) on left, right, up slugs
    Landscape or Portrait : Landscape type
    Touch Panel : Without


    Related Products:


    Industrial TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4", , etc.


    Our Advantages for LCD panel:


    1FOG automatical device can ensure the capacity of 1000,000 per month.
    2MOQ can be 100pcs, lead time of standard products is 20 days.
    3Reliability test and full examination to ensure the high quality of the display.
    4OEM&ODM are provided for TFT/TN LCD/Plastic Moulding.
    5Strictly ISO quality management system.
    6Mature and Professional R&D and after service.
    7Various cooperation experience with big brands

    N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.


    Optical Features :


    Display Mode :S-IPS, Normally Black, Transmissive
    Brightness :200 cd/m² (Typ.)
    Contrast Ratio :600 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Response Time :35 (Typ.)(Tr+Td)
    Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :Symmetry
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.45/1.75 (Typ./Max.)(13 points)
    Lamp Position :Edge light type
    Lamp Type :WLED
    Lamp Amount :6S6P
    Lamp Shape :6 strings
    Lamp Life Time :10K(Min.) (Hours)
    Lamp Current :5/20/25mA (Min./Typ./Max.)
    Lamps Power Consumption :2.3/2.8W (Typ./Max.)
    Interface Type :Included in panel signal interface
    Lamp Driver Board :No

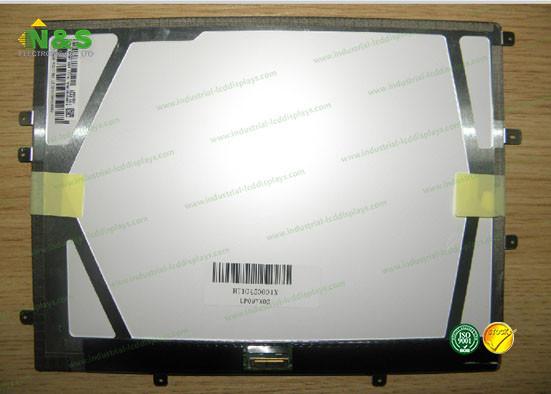

    Details Pictures for the LP097X02-SLEA Screen Display Panel:
