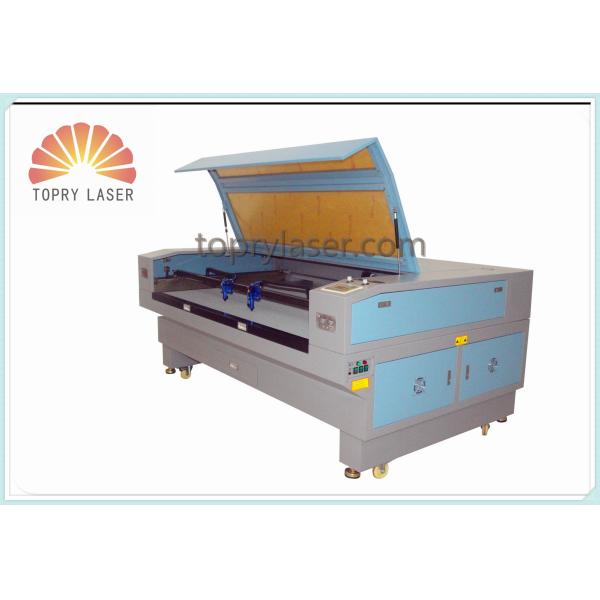

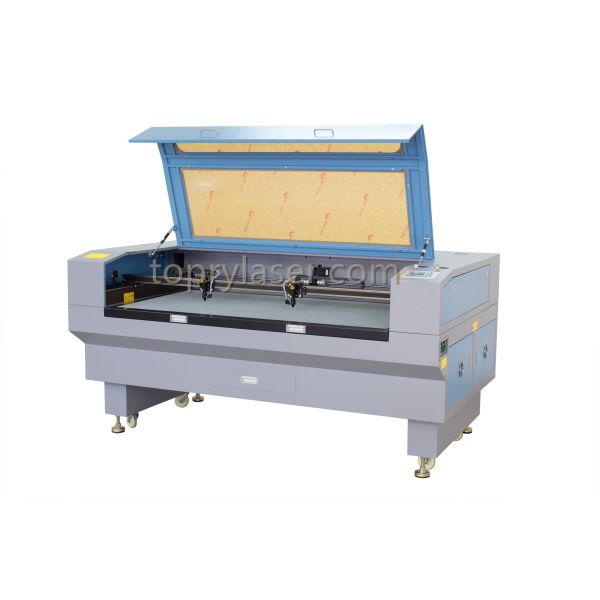

    Plastic Acrylic Plexiglass CO2 Double Heads Laser Cutting And Engraving Machine(JM1680T)

    Ask Lasest Price
    Brand Name : TOPRY
    Model Number : JM1680T
    Delivery Time : 7 Working Days
    Payment Terms : T/T, Western Union
    Certification : China
    Price : USD
    MOQ : 1 Unit
    • Product Details
    • Company Profile

    Plastic Acrylic Plexiglass CO2 Double Heads Laser Cutting And Engraving Machine(JM1680T)


    Plastic Acrylic CO2 Double Heads Laser Cutting And Engraving Machine


    Product Features
    Two laser heads working at the same time double enhances the working efficiency, adopted imported high precision spare parts, stable and reliable DSP control system, simple and convenient interface, stable motion drive system with superior performance, high precision moving rails, all these lead to the features of high efficiency, energy conservation, stability and convenience during working.
    Applicable Industry
    Garment, leather, cloth toys, embroidery patch cutting, arts and crafts, advertising, decoration, packaging print and so on.


    Applicable Materials
    Cloth, wool, leather, paper, plastic, rubber, PVC plate, wood, plexiglass, epoxy resin, acrylic, crystal, tile and so on.


    Technical Parameter


    Laser powerTwo pcs 80W laser tube
    Laser typeCO2 glass tube Hermetic and detached CO2 domestic laser tube
    Operatation voltageAC220V(or 110V)±10% 50Hz/60Hz
    Cutting speed0-36000mm/min
    Repeat position accuracy≤0.01mm
    Minimum characterEnglish letter: 1*1mm
    Resolution≤4500dpi
    Control modeDSP
    Transfer modeBy USB port or U flash disk
    Software environmentWin7
    Compatible graphic formatBMP, PLT, DST, AI, DXF, GIF, JPG, PCX, TGA, TIFF, etc.
    Compatible softwareCorelDraw/ AutoCAD
    Cutting thicknessdepending on material
    Engraving speed0-64000mm/min
    Cooling methodWater cooling (with laser tube protection system)
    Working humidity(RH)0-45ºC
    Cutting power controlFine turning possible
    Laser headDual laser head (30mm up & down adjustable)



    Quality Plastic Acrylic Plexiglass CO2 Double Heads Laser Cutting And Engraving Machine(JM1680T) for sale
