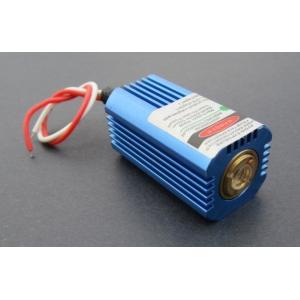

Features:
Such kind of products can be widely used for stage laser light, TTL
modulation, can work for a long time ,it is a real industrial laser
.We can provide photoelectric solutions for customers and can help
design laser module to meet customers requirement.
Specifications:
Output Wavelength: 532nm
Output Power: 45-55mW
Cooling Method: Aluminium Heat Sink
Modulation Frequency: no Modulation
Performance Characteristic: Continuous Work 30 minutes
Surface Treatment: Aluminium Grey
Housing Material : Aluminium
Circuit Control: Constant Current
Anti-access Protection: With automatic identification of positive
and negative
Operating Voltage: DC=3-5V
Working Current: I < 350mA
Warm-up Time: No
imension: 40mm (L)*21mm(W)*21mm(H)
Diameter: 25mm
Working Temperature: -10℃~+40℃
Storage Temperature: -10℃~+40℃
Structure Features: Laser Diode + Lenses + Radiating Shell
Remarks: with a built-in Power Supply.
Warning: the input voltage is 3-5V, exceed it will cause the
circuit and module damaged.
