Such kind of products can be widely used for stage laser light, TTL
modulation, can work for a long time ,it is a real industrial laser
.We can provide photoelectric solutions for customers and can help
design laser module to meet customers requirement.
Specifications:
Mainframe Dimension: 69mm (L)*30mm(W)*30mm(H)
Power Supply Dimension: 71.5mm (L)*35.5mm(W)*16mm(H)
Output Wavelength: 405nm
Output Power: 150mW
The Way of Cooling: Aluminum Heat Sink
Frequency of Modulation: Modulation
Performance Characteristic: Continuous Work
Surface Treatment: Blue
Material of Outside: Aluminium
Circuit Control: Constant Current
Anti-access Protection: With automatic identification of positive
and negative
Operating Voltage: DC=12V
Working Current: I < 180mA
Warm-up Time: No
Working Temperature: -10°c~+40°c
Storage Temperature: -10°c~+40°c

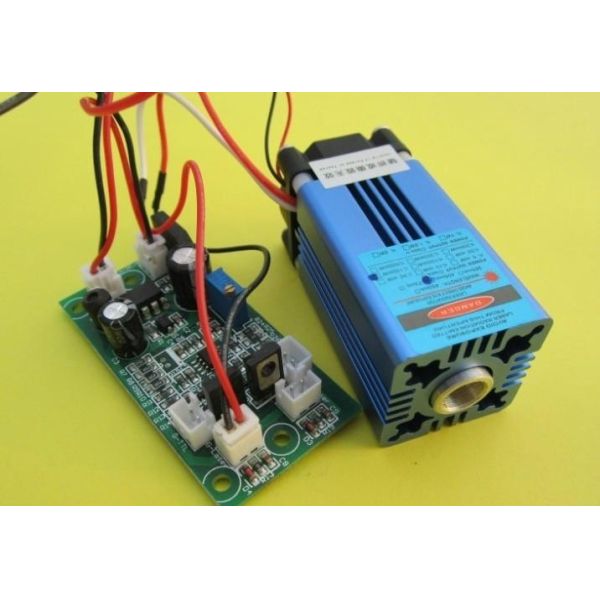

Structure Features: Laser Diode + Lenses + Radiating Shell
Remarks: Power supply is external
