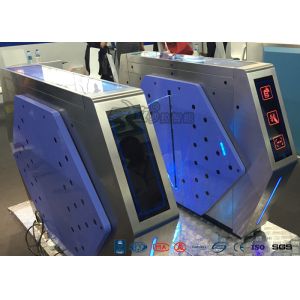

    Access Control Automatic Flap Barrier Gate Walk Through Optical Turnstile

    Ask Lasest Price
    Brand Name : RONA
    Model Number : RNCF H6088 / RNCF H6088S
    Certification : CE / ISO9001
    Price : negotiation
    Payment Terms : , T/T, L/C
    Supply Ability : 2000 units Per Month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    Access Control Automatic Flap Barrier Gate Walk Through Optical Turnstile

    Access Control Automatic Flap Barrier Gate Walk Through Optical Turnstile


    Introduce of the flap barrier gates

    • Optical turnstile is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
    • The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
    • It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
    • In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
    • Optical Turnstiles are suit for elegant and luxury entrance solutions

    Technical parameters of flap barrier gates

    ModelRNCF H6088
    Flap length245mm
    Lane width550mm
    Cabinet materialCold rolled steel & aluminum alloy
    Material of Flap DoorAcrylic plate
    Housing of thickness2.0mm
    Normal Life Span3 millions times
    Communication InterfaceStandard RS485
    Transit speed30-40 persons/min
    Time for opening or closing0.5s
    Starting time after power on3s
    Input interfaceDry contact signal or +12Vor pulse signal with width more than100ms DC12V
    Transit speed25~32 persons/min
    Working temperature-10°C~50°C
    Working environmentIndoor / Outdoor (Shelter)
    Relative humidity≤95%, no condensation

    Functions of flap barrier gates

    1. working method can be set by the buttons on the main panel

    2. This model is double wing flap gate, low noise, smaller casing, save space
    3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
    4.Anti-illegal in, anti-intrusion, auto close for reverse direction.
    5. Anti-collision, gate closes when no valid signal is given.
    6. Gates can be synchronous
    7.uto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
    8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors).
    9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
    10. One way or two way control.
    11 Unit can be controlled and administered by remote control.

    Extensible functions:
    1. LED counter display
    2. Casing and gate size can be lengthened
    3.Lgic judgment by photocells (7pair or 9 pairs)
    4.Speech reminder
    5.normal close or normal open adjustable
    6. Light, sound alarm
