    Ship-Borne EO / IR Electro Optical Tracking System for Surveillance Application

    Ship-Borne EO / IR Electro Optical Tracking System for Surveillance Application

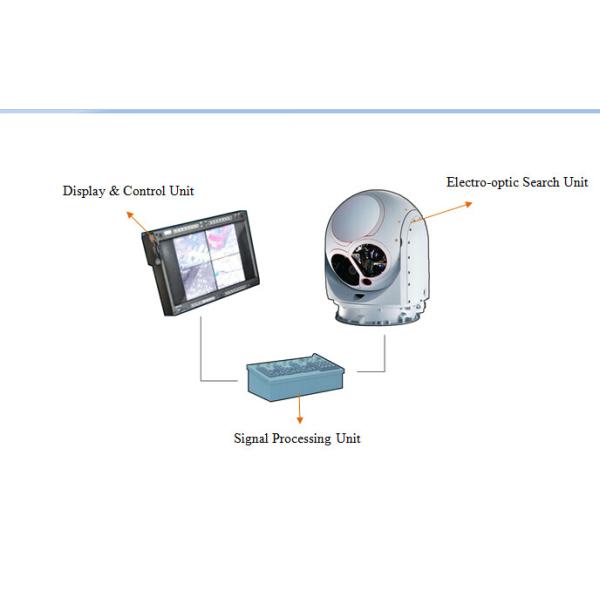

    JH602-300/75 Surveillance Ship-borne Electro-optic tracking system EO / IR Search System

    Electro-optical Tracking System


    APPLICATIONS

    Search and tracking targets (attack helicopter and cruise missile) in full airspace for early-warning.


    SYSTEM PERFORMANCE

    Batch multiple- target tracking number: 120PCS

    1. Batch multiple- target tracking number: 120PCS
    2. Early-warning distance: (under mild atmosphere condition)
      1. Helicopter: 20km
      2. Cruise missile: 10km (unspecified type, range, height, speed, route shortcut)
    3. Search range: Azimuth: 360°; Pitch: -5°~ 15°
    4. Search speed: ≥120°/s (3s/cycle)
    5. Detection probability: ≥90%
    6. False alarm rate (FAR): 1times/h​

    TECHNICAL SPECIFICATION

    IR Thermal Imaging Camera
    Spectral band8~12µm
    Detector resolution288×4 TDI
    Pitch28µm×38µm
    Optic transmittance75%
    F number1.67
    Vertical FOV1.8°
    NETD≤80mK
    Weight≤10kg
    Power consumption≤50W
    Search platform
    Scanning speed≥120°/s
    Scanning control accuracy≤ 0.5%
    Pitch range-5°~ 15°
    Pitch stabilization accuracy≤ 0.1mrad (In order to reduce cost, pitch stabilization can be remove, but the mounting platform must have leveling capability or fixed mounted)
    Angular calculation accuracy≤ 0.3mrad
    Weight≤80kg
    Power consumption≤500W
    Signal Processing Unit
    Target detection probability≥ 90%
    Batch multiple- target tracking number120PCS
    Target calculation error≤0.5mrad
