Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule

Name: Zinc Alloy LCSC Simplex Fiber Optic Adapter With Ceramic Ferrule
Brand: CY COM
Price: 1.12 USD

Ask Lasest Price
Brand Name :	CY COM
Model Number :	LC-SC SX
Certification :	ISO9001:2008
Price :	USD1.12-3.24/PCS
Payment Terms :	L/C,T/T,Western Union payments for offline orders.
Supply Ability :	4.5 MIllion PCS / Month
Delivery Time :	in 3-5 days

Add to Cart

Product Details
Company Profile

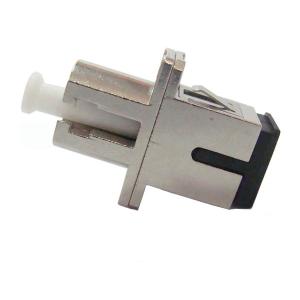

Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule

Zinc Alloy LC-SC Simplex Fiber Optic Adapter With Ceramic Ferrule

Application:

Optical fiber communcation network,data transmission,
test equitments,LAN,CATV.

Description:
Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.

Features:

Low insertion loss;
Good repeatability and interchangeability;
Good environmental stability.

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85

Ordering Information:

For example:LC-SC, single mode, SX hybrid adapter
Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule end-face: PC,UPC,APC
Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
Appearance: with ear type, no ear type;
Material: copper alloy, zinc alloy, plastic.
