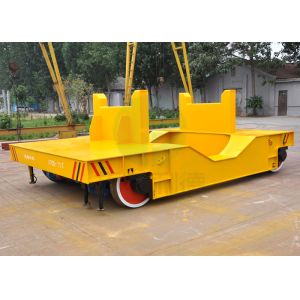

    Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX-30T ladle transfer bogie
    Certification : CE,ISO9000
    Price : $7000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

    Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale

    Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale


    Working Principle of liquid steel ladle transfer bogie


    This series Ageing Furnace Material Transport Liquid Steel Ladle Transfer Bogie With Weighing System Electronic Scale is powered by battery. The battery supply power to the DC motor, which is installed inside of transfer bogie body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive transfer bogie working.



    Description of ladle transfer bogie

    The ladle transfer bogie use heat insulating material, it can resist the high -temperature. In order to ensure safety and working frequency, the ladle transfer bogie usually prepared two motors, When one is damaged, the other one can be used to continue the work.
    This kind of ladle transfer bogie can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.
    Ladle transfer bogie is specially designed to transfer the high-temperature ladle. This kind of transfer bogie has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the bogie should be specially designed.


    Storage BatteryBattery Charger
    Electric Control BoxSound & Light Alarm


    Photos of ladle transfer bogie



    Application of ladle transfer bogie

    The steel ladle transfer bogie is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.
    In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.



    Technical parameters of ladle transfer bogie


    Model

    KPX-20T

    KPX-30T

    KPX-50T

    KPX-63T

    KPX-150T

    Rated load (T)

    20

    30

    50

    63

    150

    Table size

    length(L)

    4000

    4500

    5500

    5600

    10000

    Width(W)

    2200

    2200

    2500

    2500

    3000

    Height(H)

    550

    600

    650

    700

    1200

    Wheel Base (mm)

    2800

    3200

    4200

    4300

    7000

    Rail Inner Gauge (mm)

    1435

    1435

    1435

    1435

    2000

    Wheel Quantity

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    75

    75

    Running speed (min)

    0-20

    0-20

    0-20

    0-20

    0-18

    Motor Power (Kw)

    2.2

    3.5

    5

    6.3

    15

    Running Distance for one Charge(Km)

    4.8

    4.2

    4

    3.6

    3.2

    Max Wheel Load (KN)

    77.7

    110.4

    174

    221.4

    265.2

    Reference Weight (t)

    5.9

    6.8

    8

    10.8

    26.8

    Recommended Rail Model

    P24

    P38

    P43

    P50

    QU100


    Contact Info:


    Lucy Ji
    Xinxing New Leader Machinery Manufacturing Co., Ltd
    T:86-373-5289556 F:86-373-7720077
    E-mail: sale@newldmachinery.com
