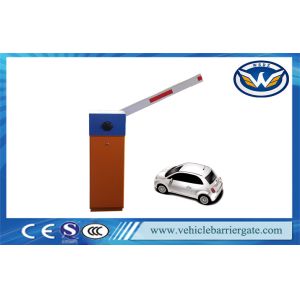

Malaysia Remote Control Car Park Barriers For Parking Lot System
WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE
IF INTEREST, PLEASE CONTACT ME FREELY!
SKYPE: zimin1314
Whatsapp: +86 18507481610
Technical data:
1) Beam length: <=6m
2) Opening (Closing) time: 1s, 1.8s,3s, 6s
3) Center height: 0.83m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -20 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 55KGS
Car Park barrier functions & features:
Features:
Integrative machine core: all part is made by mold, so all parts
can be more accurate. And so the
barrier gate can be much more stable;
.Left or right installed can be amendable. Customer can amend
install direction by himself;
.Accurate link mechanism: link mechanism can release arm’s shake
and motor load, so the
barrier gate can move more stable and barrier gate’s working life
can be more longer;
.70W turbine worm transmission deceleration induction motor: Drive
Steady, Noise Lower,
Structures Compact, can realize self-locking.
Functions:
| 1) Manual release |
| 2) Machine core with compression spring, effectively avoids the
accidents caused by spring breaking |
| 3) Die-casting aluminum alloy motor, precision and good at thermal
radiating |
| 4) Motor cooling fan, solving the problem of heat-protection |
| 5) Double safety limit switches (photocell electrical limit
switch/motor memory sensor) |
| 6) Reversing on obstacle |
| 7) Auto-closing |
| 8) Support the INFRARER PHTOCELL for anti-bumping function
(optional) |
| 9) Support the external and internal VEHICLE LOOP DETECTOR
(optional) |
| 10) Traffic light interface |
| 11) Wire control (switch signal)/ Remote control (418MHZ) |
| 12) RS485 communication module (optional) |
Parking list:
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 | | |
1. Strong carton case with cushion for safety, air bubble film
inside for protect ing the
apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case
packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and
express, which according to your
detail requirements.
FAQ:
1. When barrier finish closing, why does the arm open itself
slowly?
- the spring is too tight, you need release the spring a little, then
test it again.
- see whether the main crank touch the triangle tightly or not, if
tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal
noises?
- As for this, it means the resistance on controller board is broken,
if you have professional tools to check,
- then replace that broken resistance, if not, replace that
controller panel.
3. Why does the barrier finish half operation of opening and
closing?
- If uses our controller panel, you only need to find resistance R37
on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of
inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order
control, what's the problem?
- To check the loop cable first, because the loop cable maybe brokem
- To check the motor sensor, if it is not set well, then reset it in
the middle between two holes on sensor rod.
6. Why does the arm wave a lot when opening and closing?
- The spring is very tight
- The Screw touches the rubber absorption tightly, need to reset
again.
7. Rubber linning installation suggestion:
- It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
- The place with many vehicles come and go, like shopping center,
carpark area.
8. Can you accept OEM/ODM order?
- Absolutely, we are manufacturer of barrier gate, with 7 years
researching and developing experience.
