Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal

Chasis Completes LGX Modules With Splitters1x8 SC/Apc Adaptors Rack Mount Metal

This LGX splitter is design in a LGX module which is used for LGX chassis application. It is also terminated

with adapters and according to different requirements, LGX modules can be inserted into the chassis.

In addition, LGX splitter can also installed in rack mount chassis.

Chassis structure

Chassis specification

1X8 PLC splitter Blockless Type

Features:

Ø Low insertion loss, Low PDL and High reliability

Ø High return loss and Good repeatability

Ø Wide wavelength range

Ø Excellent channel-to-channel uniformity

Applications:

Ø LAN, WAN and Metro Networks

Ø FTTH project & FTTX Deployments

Ø CATV System

Ø GPON, EPON

Ø Fiber Optic Test Equipment

Ø Data-base Transmit Broadband Net

Technical specifications

Note: connector loss is excluded.

More pictures

• This chassis completely can hold 16pieces x 1:8 Splitter mini module 0.9mm in LGX modular box.
• the LGX box is plastic, the chassis is metal material.
• the adapter or connector of the splitter output or inpt can be SC or LC, UPC or APC plished.
• splitter can be: 1x2,1x4,1x6 or 1x8 splitter ratio.
• this chassis is rack mount 19" with mounting ears.
• the chassis have cable warpping wires at the front panel. and can be closed totally.
• the chassis max. hold 144cores SC SIMPLEX.

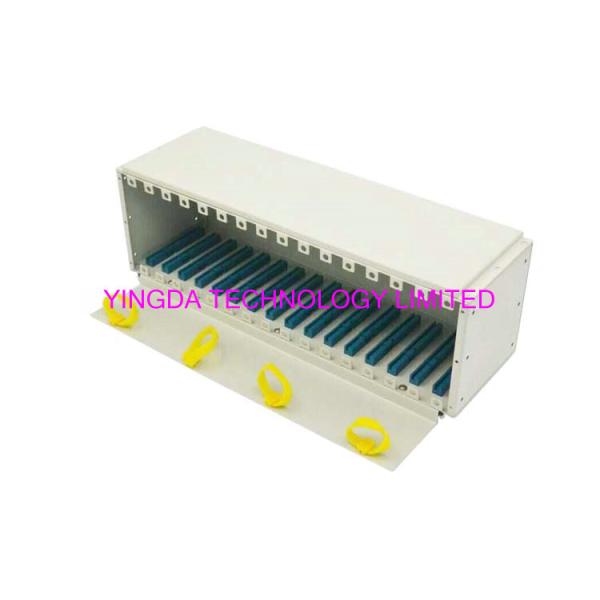

fully load completed view

chassis empty side view

chassis empty side view

the LGX modular view,size:130*100*25mm, max. hold 1:1x8 splitter, 9pcs SC adapters.

the adapter can be SC simplex or LC duplex coupler on the LGX modular ports.
