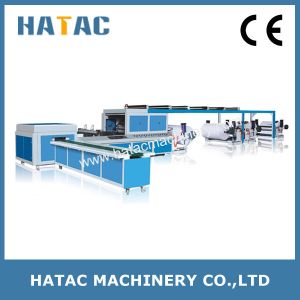

A3 A4 Paper Making Machinery Supplier applications for A3/A4 format paper,it can be produced as your
production with one jumbo roll to max4 jumbo rolls.
Working Parameter:
| Max. Unwind Width | 1100mm |
| Max. Unwind Diameter | 1400mm |
| Cutting Size | A3/A4 format |
| Cutting Precision | ±0.2mm |
| Cutting Speed | 100cuts/min |
| Power | 10kw |
| Air Pressure | 5.5kg/cm2 |
| Voltage | 380V,3-Phase,50Hz |
| Dimension(L*W*H) | 17500*2250*2000mm |
Specification:
1. With PLC Control System and Touch Panel HMI for working
parameters preset,convenient operation.
2. With Shaft Unwind Stand for jumbo roll loading,save time and
labor.
3. With Automatic Tension Control for machine stable working.
4. With EPC web guide system for material edge tracking,especially
for printing material.
5. With disc type blade as slitting blade and crosscutting blade as
sheeting blade.
6. With Servo Motor for cutting length control,with high precision.
7. With Automatic Stacker for sheets collection in order.
8. With meter counter and emergency stop.
9. All transmission belts have been dynamic/static balance
treatment.
10. Electrical appliciances are strictly in accordance with CE
certification.
Related Machine:
High Speed Paperboard Sheeting Machine
Rotary Blade A4 Paper Cutting and Packing Machinery
Our Service:
1. Achievement:
1) Recommend proper device for our customers.
2) Provide the best solution for our customers' project.
3) Follow up after-sale service in regular.
2. Packing machine of paper and plastic is our areas of expertise.
1) Sturdy construction and mechanics,long-life span.
2) Accessories are included.
3) Machines which have supplied as our customers' request are with
high quality for many years.
3. Machine transportation and shipment
1) We are cooperated with experienced companies at all majoy Ports
in China.
2) We are flexible in shipping arrangements and accommodate a wide
range of shipping company and packing request.
4. After-sale Service
1) Operation starts,if there is any defect and area in need of
service,we will give you troubleshoot within 24 hours.If they are
still not solved,to dispatch technician will be available as your
request,round-trip tickets,food,hotel and salary will be paid by
our customers.
2) If assembly is broken(not by human being factor) within one year
guarantee time,new assembly will be expressed for free.After one
year warranty time,you can buy parts from us or at your local
market,we will assist you to get proper ones.
