Welding hinge butt hinge BH605, 78mm, 98mm, 104mm, 116mm, 138mm，self color or zinc plating,

The welding hinge butt hinge BH605 Information & Specifications

1 The mateiral of this butt hinge is iron.

2. Finishing: Self color, Zinc plated is available, according customer's request.

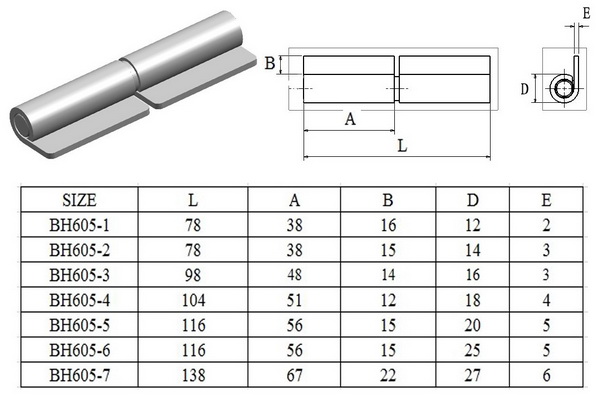

3. Size: 78X12X2mm, 78X14X3mm, 98X16X3mm, 104X18X4mm, 116X20X5mm, 116X25X5mm, 138X27X6mm, for further dimension information please see belowing drawing and table.

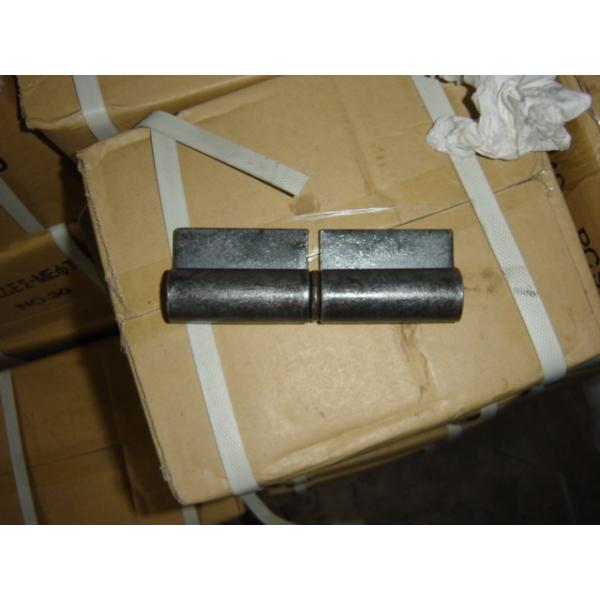

4. Each hinge combined 3 parts and made of iron, a steel pin whose middle part forged a steel washer. 2 pieces leaves.

5. it is very popular used in different market, such as Spain, South America, the leaves are widely so that the user welding on door conveniently, also inrease the welding part.

6. This kind of welding hinge used both for left hand and right hand, the direction can be changed.

7. One pair hinge is two hinges, ordinary for one door.

8. Widely used for gates, electrial boxes, barbeque pits, heavy machinery doors and trailers.

9. We can produce according to customer's demension
