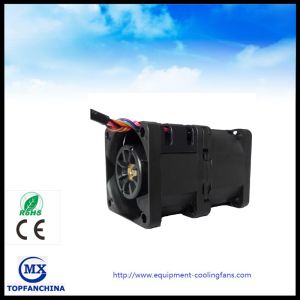

12V DC Computer Case Cooling Fans / Ball Bearing Medical Equipment / LED

12V DC Fan 40mm x 40mm x 56mm Computer Case Cooling Fans / Medical Equipment / LED

1.Description:

• 12V DC Axial 40 x 40 x 56mm Fan , DC Burshless Fan , DC System Fan , Computer Fan , Wii Fan , Xbox Fan , PS4 Fan .

• It's a new special mini fan for equipment of confined space .

2.Material:

• Frame:Plastic(UL94V-0)

• Impeller:Plastic(UL94V-0)

• Leadwire:UL1007 AWG#28 or Equivalent (+):Red (-):Black

3.Protection:

• Motor:Impedance Protected and Reverse Polarity Protected

4.Expected Life:

• Ball bearing:50,000 hours (40℃)

5.Allowable Ambient Temperature Range:

• Operating Temperature:-10℃~+70℃

• Storage Temperature:-40℃~+70℃

• Non Condensing Environment

6.Insulation Resistance:

• Not less than 10M ohm between housing and positive end of lead wire(red) at 500V DC.

7.Dielectric Strength:

• No damage should at 500 VAC for 60 second , measured with 5mA trip current between
  housing and positive end of lead wire.

8.Locked Rotor Protection:

• No damage shall be found after 72 hours continuously at condition of rotation locked,
  Restarting is automatic as soon as constraint to running has been released

9.Polarity Protection:

• No damage shall be found with reverse connection 5 minute at rated voltage. After returning
  to normal polarity, all function shall be normal

10.Specification:

11.Dimensions:


12.Performance Curve
